Product Description

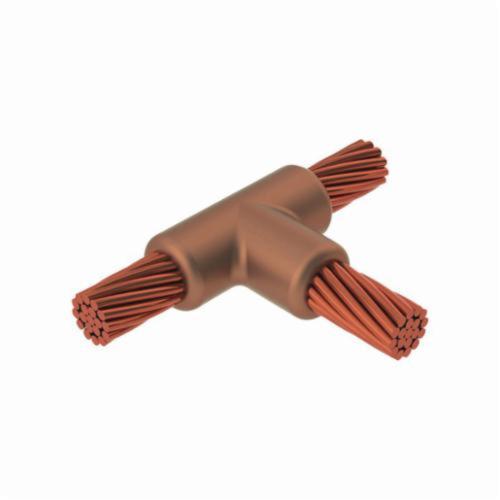

Erico TAC2Q2G is a standard weld metal mold designed for use with 2/0 to 4/0 AWG conductors. This product allows cable to cable connections with reliable performance. The mold is engineered from graphite and provides a permanent connection, ensuring low resistance and a robust molecular bond.
- Forms a permanent, low resistance connection
- Portable installation with no external power required
- Rated with the same current capacity as the conductor
Product Highlights
This mold is suitable for creating exothermic connections, easily trained personnel can use it. It is ideal for applications involving horizontal run and tap cables, making it a versatile tool for electrical professionals.
Product Information
Standard Information
-
Brand: Erico
-
Part #: Q1520
Technical Specifications
-
Conductor Size: 2/0 to 4/0 AWG
-
Connection Type: Cable to Cable
-
Country of Origin: US
-
Handle Clamp: L160
-
Material: Graphite
-
Mfg Standards/Approvals: UL, cULus Listed
-
Mold Price Key: C
-
Mold Size: 3 in W
-
Package Height: 236.22 MM
-
Package Length: 96.52 MM
-
Package Weight: 1.44 K
-
Package Width: 91.44 MM
-
Type: Type TA Standard
