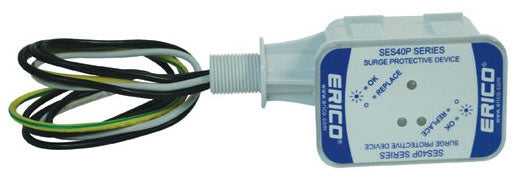

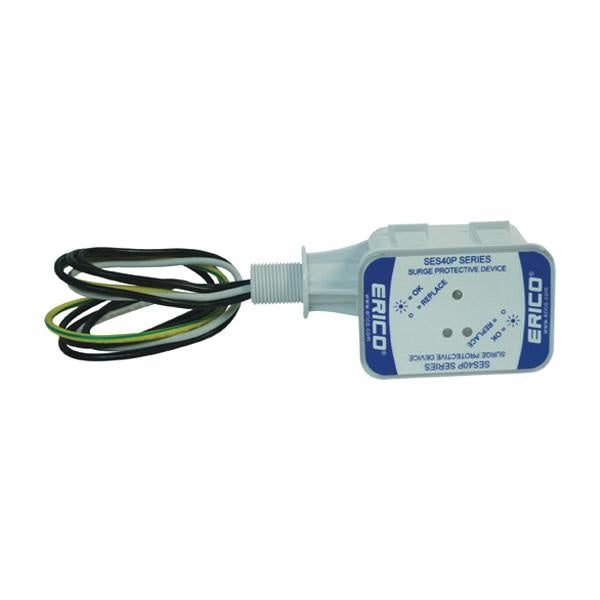

Erico SES40P120/240SP Service Entrance Suppressor

Product Description

The Erico SES40P120/240SP is a service entrance suppressor designed for protecting residential electrical systems from damaging surge events. It features thermoplastic construction, ensuring durability and longevity. This suppressor operates at a nominal voltage of one hundred twenty to two hundred forty volts AC, accommodating a variety of residential applications.

• Front-facing design simplifies installation and monitoring
• UV-stabilized thermoplastic housing
• Rated for both indoor and outdoor use

Product Highlights

This device effectively provides protection against transients, featuring a twenty kiloamp discharge current rating. It meets UL 1449 edition 4 standards, ensuring compliance and reliability.

Product Information

Standard Information

• Manufacturer: Erico
• MPN: SES40P120/240SP

Technical Specifications

• UPC: 78285685909
• Connection Type: 36 Inch 12 AWG Lead Wire
• Input Current: 40 Kiloamp
• Enclosure: NEMA 4X, IP65
• Operating Temperature: -40 to 176 Deg F
• Circuit Configuration: 3-Phase 2-Wire with Ground
• Modes of Protection: L-L, L-N
• Mounting: 1/2 Inch Straight Nipple/Direct Mount Panel
