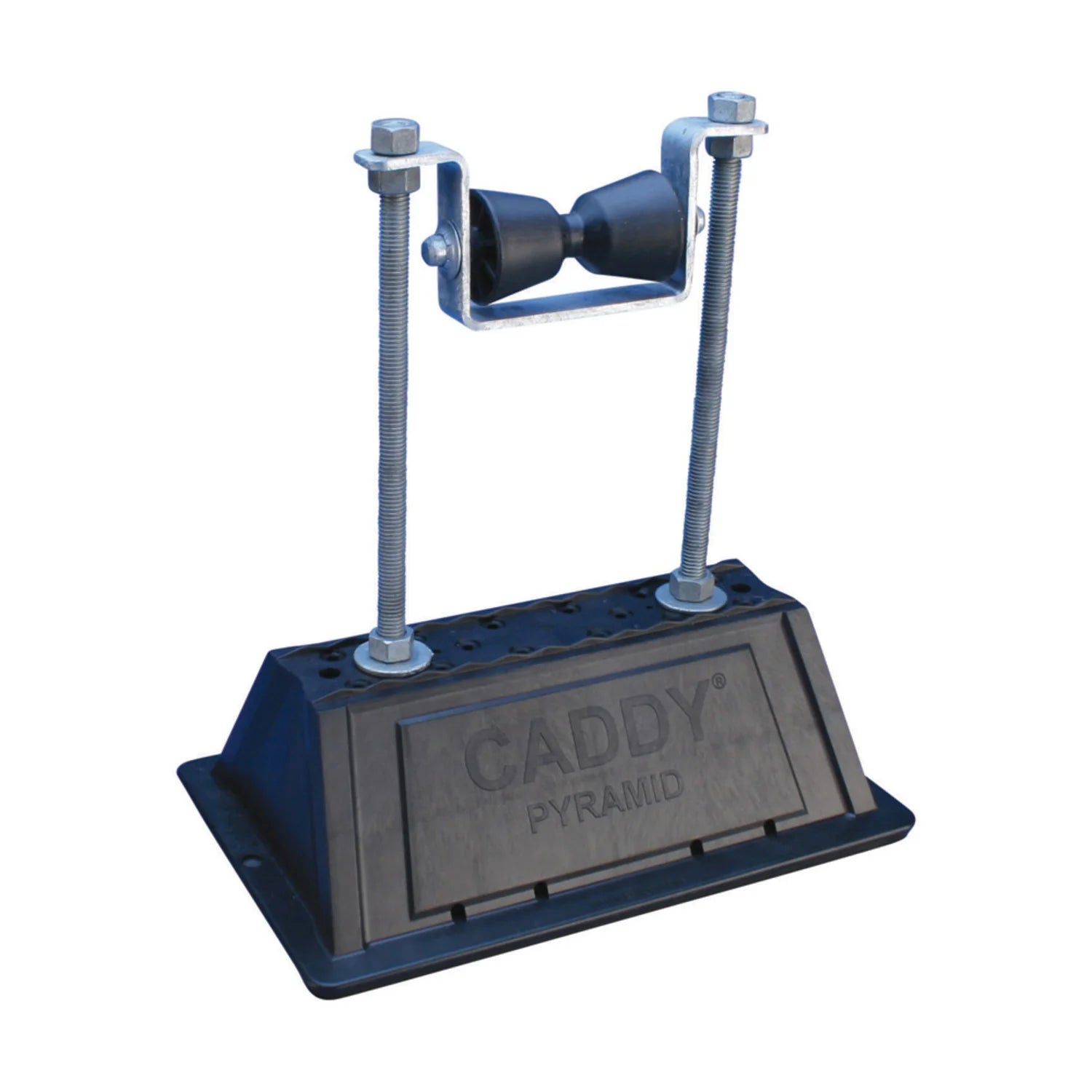

Erico-Nvent-Caddy PRA3H12 Pyramid RL Adjustable Roller Support 3 inches Max Pipe 6 inches-12 inches

Product Description

The ERICO-NVENT-CADDY PRA3H12 is a height-adjustable, roller-based support designed for rooftop applications. It allows effective navigation of pipe around obstructions. The foam bottom offers a low abrasion interface for better roof membrane protection and is compatible with single ply, bituminous, metal, and spray foam roof surfaces. It is ready to use, saving installation time and labor.

• Height-adjustable roller-based support designed specifically for rooftop applications
• Height adjustability allows for effective navigation of pipe around obstructions
• Polymeric rollers ensure corrosion free rotation

Product Highlights

Hot-dip galvanized and UV stabilized for long lasting performance. Polymeric rollers ensure corrosion free rotation. Compatible with various roof surfaces.

Product Information

Standard Information

• Brand: ERICO-NVENT-CADDY
• Manufacturer Part Number: PRA3H12

Technical Specifications

• Material: Polyethylene;Polypropylene;Steel
• Finish: Hot-Dip Galvanized
• Temperature: -50 to 150 °F
• Static Load Safety Factor: 3:1
• Pipe Size: 3" Max
• Height (H): 6" - 12"
• Length (L): 12 1/2"
• Width (W): 8"
• A: 6 1/4"
• Surface Area: 92in²
• Static Load (F): 250lbf
