Erico-Nvent-Caddy CD6B Bolt Close Conduit/Pipe Clamp 2 1/2 inches EMT, 2 1/2 inches Rigid/Pipe

Product Description

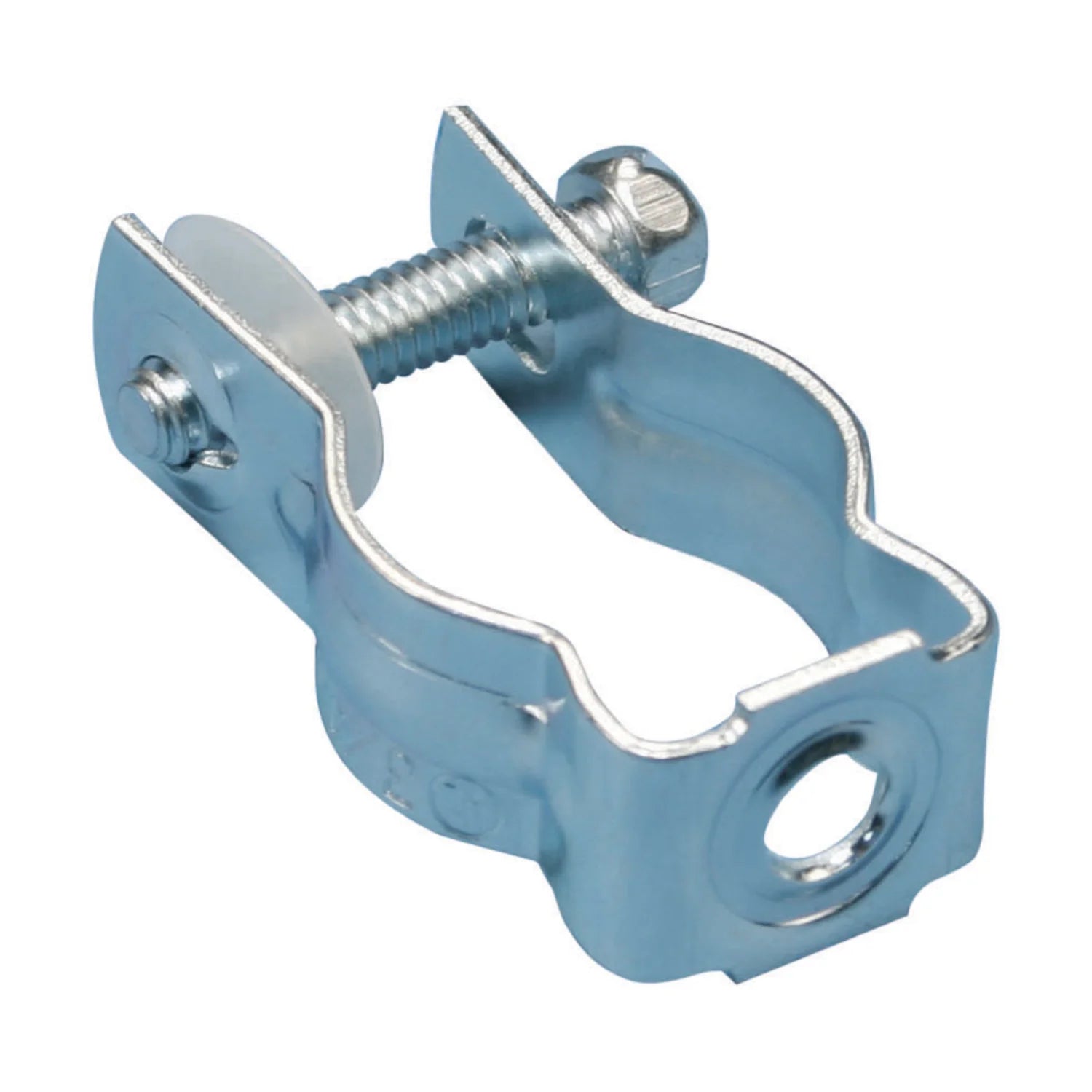

The ERICO-NVENT-CADDY CD6B is a bolt close conduit/pipe clamp made of steel, designed for 2 1/2" EMT and 2 1/2" rigid/pipe. It features a 0.313" hole and electrogalvanized finish. The clamp supports static loads of 350lb (F1) and 50lb (F2). It is suitable for securing conduit or pipes in various applications.

• Retained bolt and built-in nut means there are less parts to handle or drop
• Combo head bolt works with slotted, hex, #3 phillips or #2 robertson drivers
• Steel construction with electrogalvanized finish

Product Highlights

Steel conduit/pipe clamp with retained bolt and built-in nut for easy installation.

Product Information

Standard Information

• Brand: ERICO-NVENT-CADDY
• Manufacturer Part Number: CD6B

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Nut Type: Hex Nut
• Outer Diameter (OD): 2.6" - 3"
• EMT Conduit Size: 2 1/2"
• Rigid Conduit/Pipe Size: 2 1/2"
• Hole Size (HS): 5/16"
• Static Load 1 (F1): 350lb
• Static Load 2 (F2): 50lb
• UPC: 782856120063
• EAN: 0782856120063
