Erico-Nvent-Caddy 512HDFM35 Heavy Duty Fan Fixture Mount Kit 35 lb REPLACEMENT MPN

Product Description

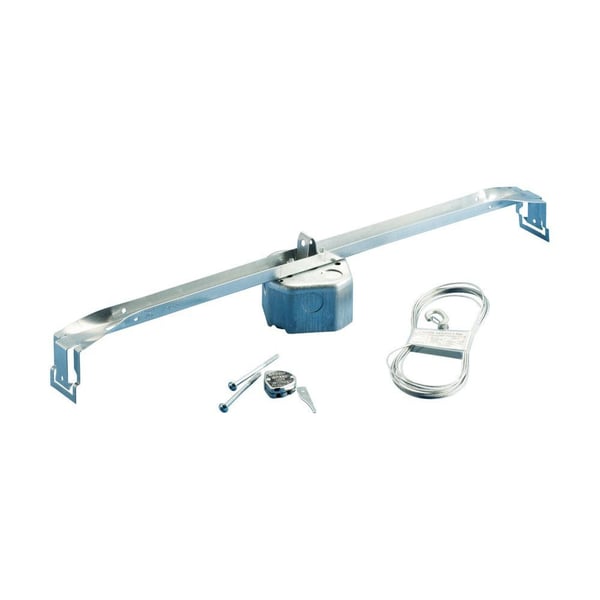

The ERICO-NVENT-CADDY 512HDFM35 heavy-duty fan or fixture mount kit supports up to 35 lb with a single brace. The 2-1/8 in electrical box is pre-mounted in the center of the brace and features three open knockouts for installation. The installed box position is adjustable over 16 in. Includes two fixture mount stabilizer clips and a speed link universal support system.

• 2-1/8 in electrical box is premounted and centered on bracket and is fully adjustable up to 8 in either direction
• Electrical box has three open knockouts for quick installation
• Each kit includes screws to mount fan, nVent CADDY speed link to support from building structure and two fixture mount stabilizer clips (FMSBC1) to stabilize ceiling tiles

Product Highlights

Heavy duty fan or fixture mount kit with adjustable electrical box and stabilizer clips for secure ceiling fan and fixture installation.

Product Information

Standard Information

• Brand: ERICO-NVENT-CADDY
• Manufacturer Part Number: 512HDFM35

Technical Specifications

• Shape: Octagon
• Type: Heavy Duty
• Application: Acoustical, Ceiling, Partitioning and Electrical Applications
• Standard & Approvals: cULus Listed, UL Listed
• Capacity: 35 lb
• Catalog ID: CAD512HDFM35
• Finish: Pre-Galvanized
• Knockout Size: 1/2 in
• Material: Steel
• Mounting Type: Threaded
• Includes: (2) FMSBC1 Fixture Mount Stabilizer Clips, (1) Screws, (1) Speed Link
