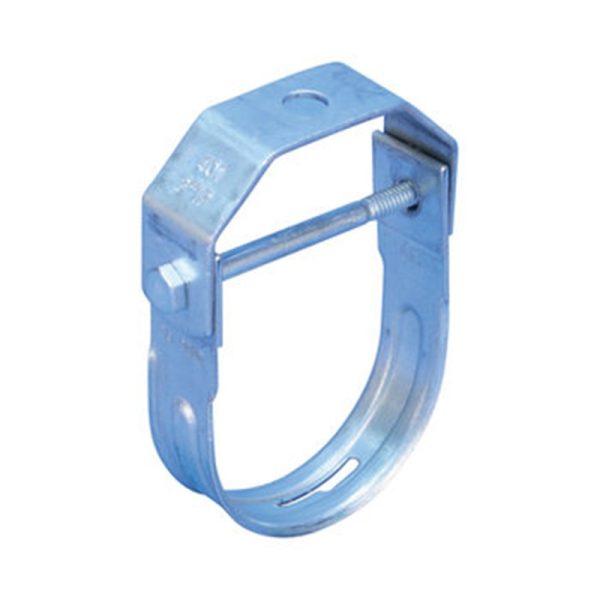

Erico-Nvent-Caddy 4010125HD Clevis Hanger 1 1/4in Pipe 3/8in Rod

Product Description

The ERICO-NVENT-CADDY 4010125HD clevis hanger is recommended for suspending stationary non-insulated pipe lines. It features flared edges to prevent sharp surfaces from contacting the pipe, suitable for 1/2" to 2" pipe sizes. The clevis bottom pivots, allowing pipe to be fed from either direction.

• Recommended for the suspension of stationary non-insulated pipe lines
• Flared edges help prevent sharp surfaces from coming into contact with the pipe (1/2" to 2" pipe sizes)
• Clevis bottom pivots to allow pipe to be fed from either direction

Product Highlights

Designed for suspending stationary non-insulated pipe lines, the clevis hanger features flared edges and a pivoting clevis bottom.

Product Information

Standard Information

• Brand: ERICO-NVENT-CADDY
• Manufacturer Part Number: 4010125HD

Technical Specifications

• Brand: nVent Caddy
• Part Number: 4010125HD
• Material: Steel
• Finish: Electrogalvanized;Pregalvanized
• Pipe Size: 1 1/4"
• Outer Diameter: 1.660"
• Rod Size: 3/8"
• A: 3 1/8"
• B: 1 9/16"
• C: 3/8"
