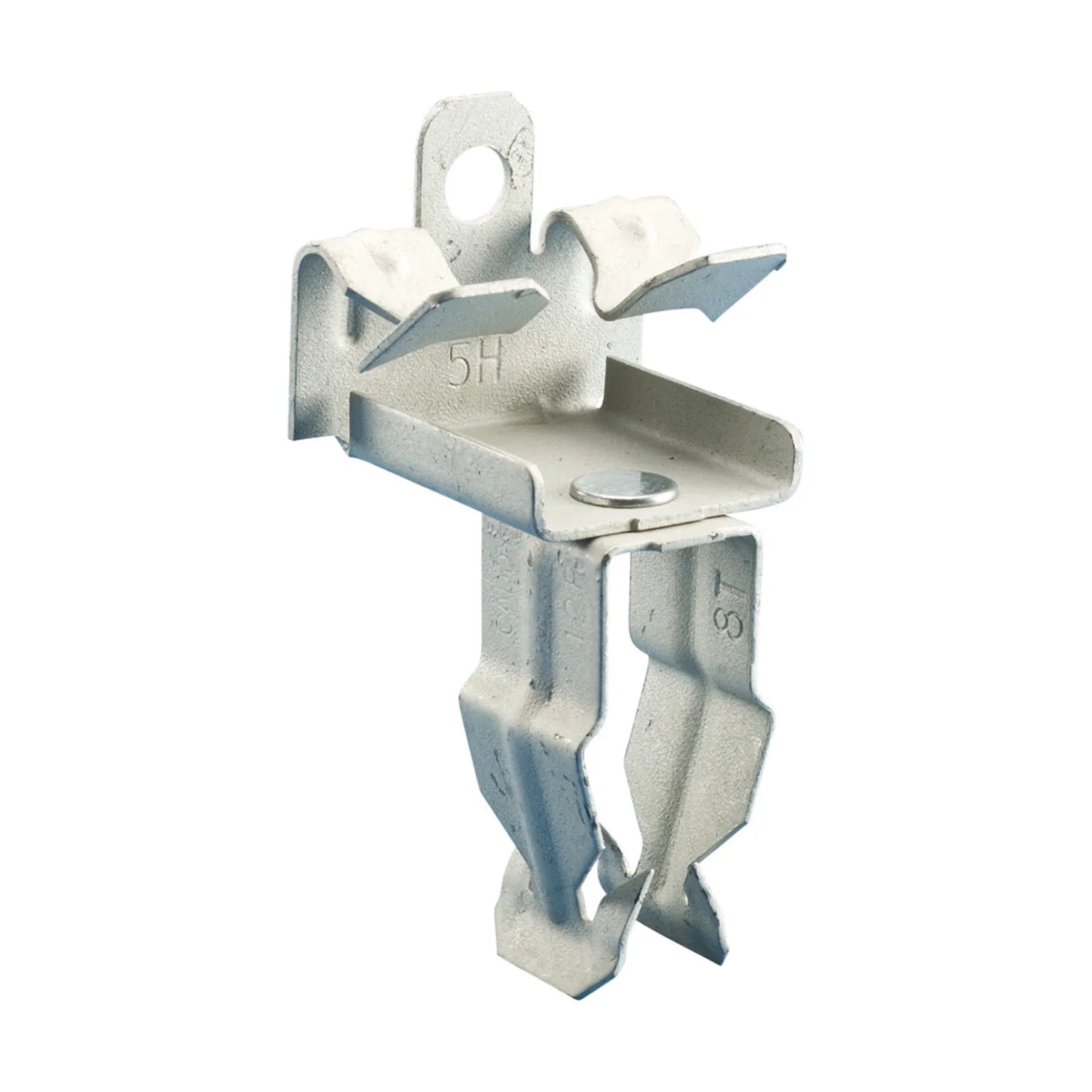

Erico-Nvent-Caddy 16P58 EM-P Conduit to Flange Clip 1 inches EMT, 3/4 inches Rigid, 1.181 inches–1.378 inches OD, 5/16 inches–1/2 inches Flange

Product Description

The ERICO-NVENT-CADDY 16P58 EM-P Conduit to Flange Clip is designed for 1" EMT and 3/4" rigid conduits, accommodating outer diameters from 1.181" to 1.378" and flange thicknesses from 5/16" to 1/2". This clip is made from spring steel with nVent CADDY Armour finish. It simplifies installation, requiring only a hammer for attachment.

• Requires only a hammer to install
• Available for EMT, rigid, IMT and aluminum conduit
• Will pivot thru 360°

Product Highlights

Installs with just a hammer. Accommodates EMT, rigid, IMT, and aluminum conduit. Offers 360° pivot.

Product Information

Standard Information

• Brand: ERICO-NVENT-CADDY
• Manufacturer Part Number: 16P58

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1"
• Rigid Conduit Size: 3/4"
• Outer Diameter (OD): 1.180" - 1.38"
• Flange Thickness (FT): 5/16" - 1/2"
• Ultimate Static Load (F): 25lb
• Orientation: Top Mount
