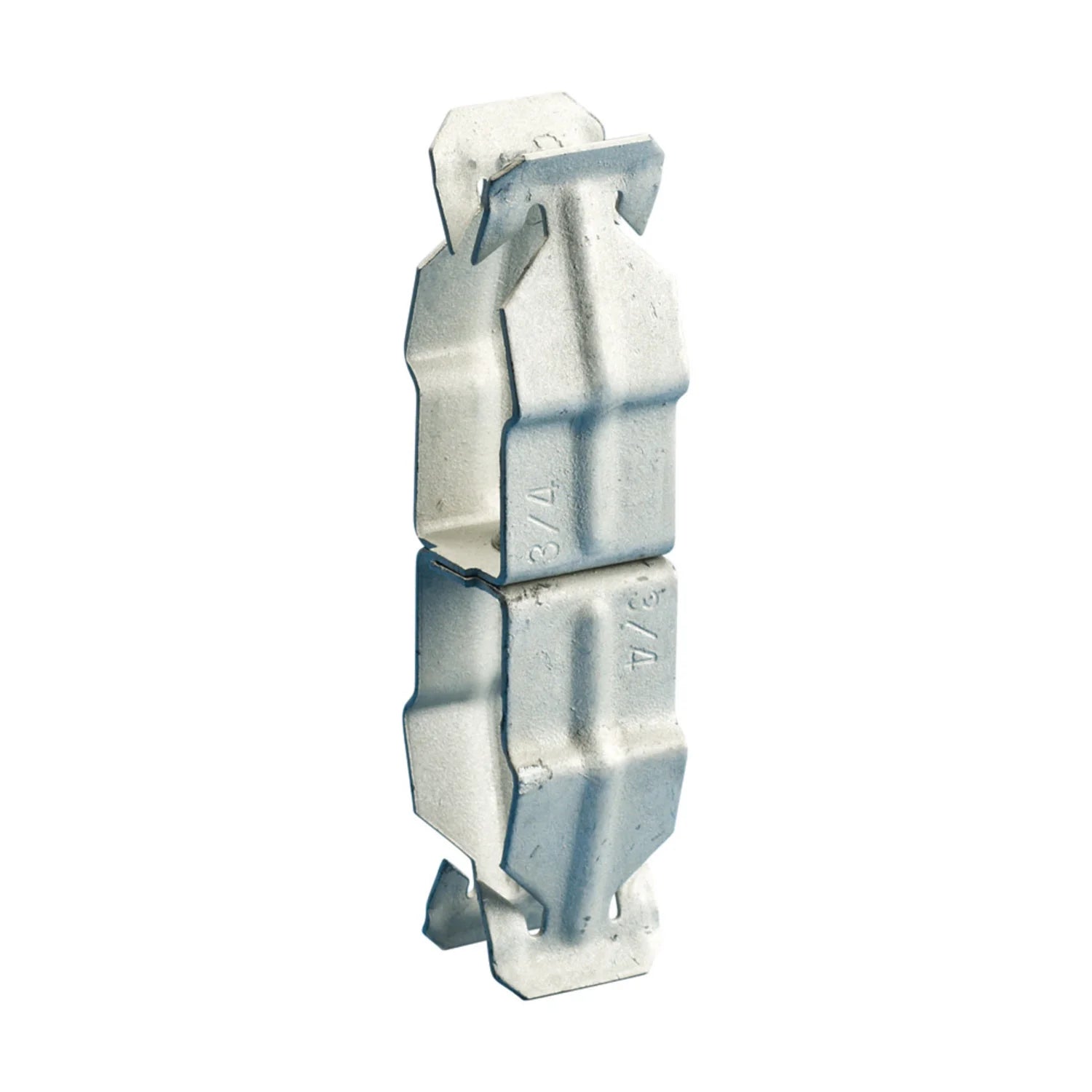

Erico-Nvent-Caddy 12P16P Push In Conduit to Conduit Clamp, 22–30 mm OD1, 30–35 mm OD2

Product Description

The ERICO-NVENT-CADDY 12P16P is a push-in conduit to conduit clamp, ideal as a spacer between same or different size conduits. Installation requires no tools. Note that the top conduit should be used for support only, not as a raceway. It features outer diameters of 22 - 30 mm (OD1) and 30 - 35 mm (OD2).

• Ideal as spacer between same or different size conduit
• No tools required for installation
• Top conduit to be used for support only, not a raceway

Product Highlights

Push-in conduit clamp for spacing. No tools needed for installation. Conduit support only.

Product Information

Standard Information

• Brand: ERICO-NVENT-CADDY
• Manufacturer Part Number: 12P16P

Technical Specifications

• Article Number: 171260
• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size 1: 3/4"
• EMT Conduit Size 2: 1"
• Rigid Conduit Size 1: 1/2"
• Rigid Conduit Size 2: 3/4"
• Outer Diameter 1 (OD1): 22 - 30 mm
• Outer Diameter 2 (OD2): 30 - 35 mm
• Ultimate Static Load (F): 110N
