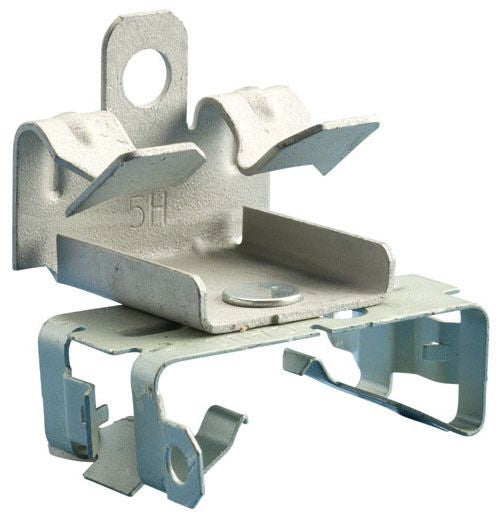

Erico MAC258 CAD MC/AC Clip Assembly

Product Description

The Erico MAC258 is a cable to flange clip designed for securing cables in various applications. It accommodates cable outer diameters up to zero point six inches and supports wire sizes from fourteen to ten AWG. The clip is made from CADDY armour spring steel, ensuring durability and strength for reliable installation.

• UL approved for safety in Canada and the US
• Suitable for beam/flange sizes ranging from five sixteenths to one half inch
• Sold in standard packages of one hundred

Product Highlights

This product is ideal for electrical installations that require secure cable management and organization.

Product Information

Standard Information

• Manufacturer: Erico
• UPC: 78285633076

Technical Specifications

• Cable Outer Diameter: 0.6 inches
• Wire Size Compatibility: (2) 14 AWG to (3) 10 AWG
• Beam/Flange Size Compatibility: 5/16 to 1/2 inches
• Material: CADDY Armour Spring Steel
• Mounting Type: Bottom
• Standard Package Quantity: 100
• Approval: UL (Canada and US)
• Applicable Standards: CEC, NEC
