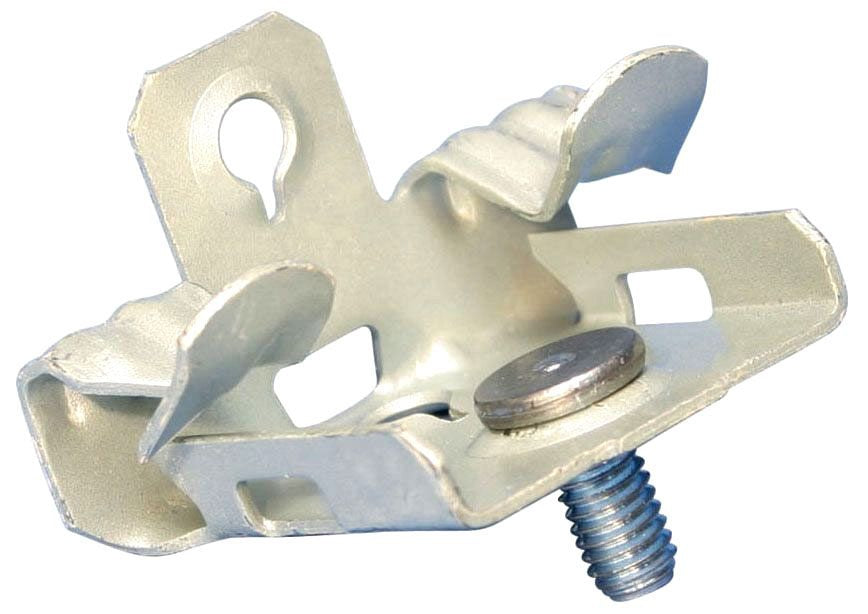

Erico M58S Hammer-On Flange Clip 1/4 Stud 5/16-1/2 Flange

Product Description

The Erico M58S Hammer-On Flange Clip is designed for effective mounting applications. This clip is suitable for supporting various fixtures from beam flanges and features a captive threaded stud to reduce additional hardware needs. It is constructed from CADDY Armour spring steel for durability.

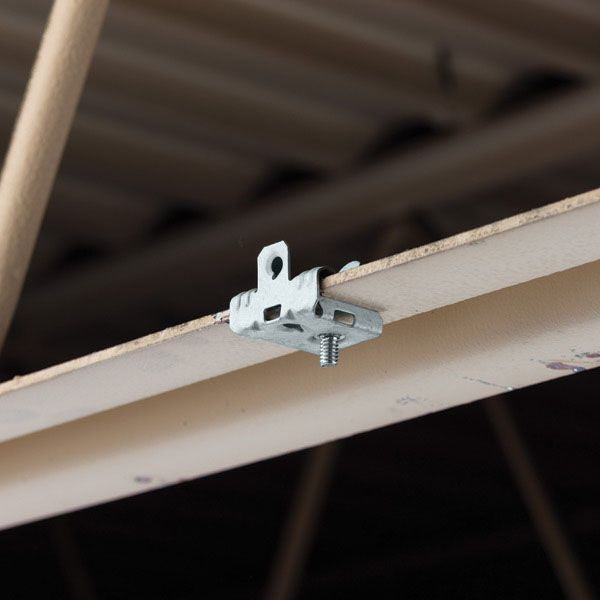

• Supports boxes, fixtures, or other applications from beam flanges.
• Installation requires only a hammer for ease of use.
• Assorted attachment points provided for inventory reduction.

Product Highlights

The clip accommodates flange thickness from five-sixteenths to one-half inches and a conduit size of one-quarter inch.

Product Information

Standard Information

• Brand: Erico
• Manufacturer Part Number: M58S

Technical Specifications

• Approval: UL (Canada and US)
• Beam/Flange Size: Five-sixteenths to one-half inch
• Conduit Size: One-quarter inch (rod)
• Installation: Hammer-On
• Material: CADDY Armour spring steel
• Mounting: Bottom
• Working Load Limit: 100 lb (Static Load 1), 75 lb (Static Load 2), 25 lb (Static Load 3)
• Standard Package: 100
• Type: Flange Clip
