Erico GTC163D Cable To Grd Rod Mold 350 KCMIL 5/8 Inch

Product Description

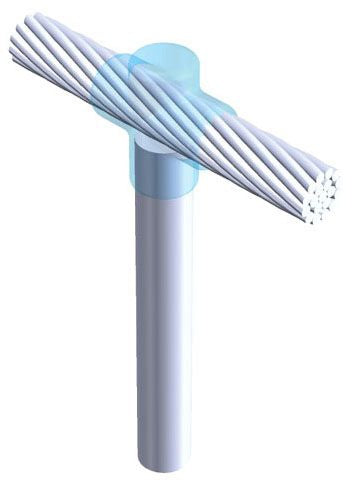

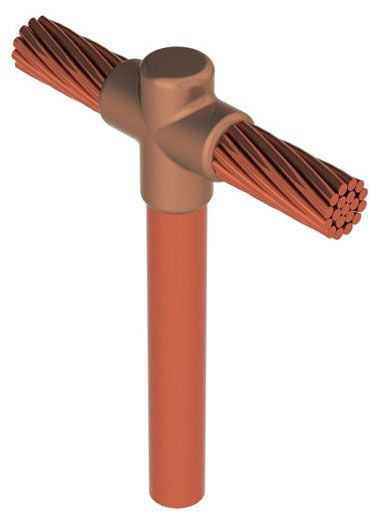

The ERICO GTC163D cable to ground rod mold is a standard type designed for creating connections from cable to ground rods. It is suitable for plain, sectional, and threaded copper clad rods with a size of 5/8 inch. This mold accommodates a conductor size of 350 KCMIL stranded with an outer diameter of 0.681 inch and uses an L160 handle clamp type and 200 weld metal type.

• Forms a permanent, low resistance connection
• Provides a molecular bond
• nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor

Product Highlights

ERICO GTC163D is a standard mold for connecting cable to ground rods, ensuring a reliable, permanent bond.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: GTC163D
• Country of Origin: USA

Technical Specifications

• Type: Standard
• Rod Type: Plain/Sectional/Threaded
• Rod Material: Copper Clad
• Rod Size: 5/8 Inch
• Conductor Size: 350 kcmil Concentric
• Handle Clamp Type: L160
• Weld Metal Type: 200
• Conductor Outer Diameter: 0.681 Inch
• Country Of Origin: USA
• Mold Family: GT
• Ground Rod Type: Copper-bonded
• Ground Rod Diameter, Nominal: 5/8"
• Ground Rod Diameter, Actual (Ø): 0.56"
• Conductor Outer Diameter, Nominal: 0.68"
• Kit: No
• Mold Split: Vertical
• Split Crucible: No
• Wear Plates: No
• Mold Only: No
• Welding Material: 200 or 200PLUSF20, Sold Separately
• Handle Clamp: L160, Sold Separately
• Price Key: C
• Ease of Use: Preferred
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Manufacturer: nVent
• Mold Price Key: C
• Applications: Grounding and Bonding
• Pkg Qty: 1 pc
• Standard Packaging Qty: 1 pc
