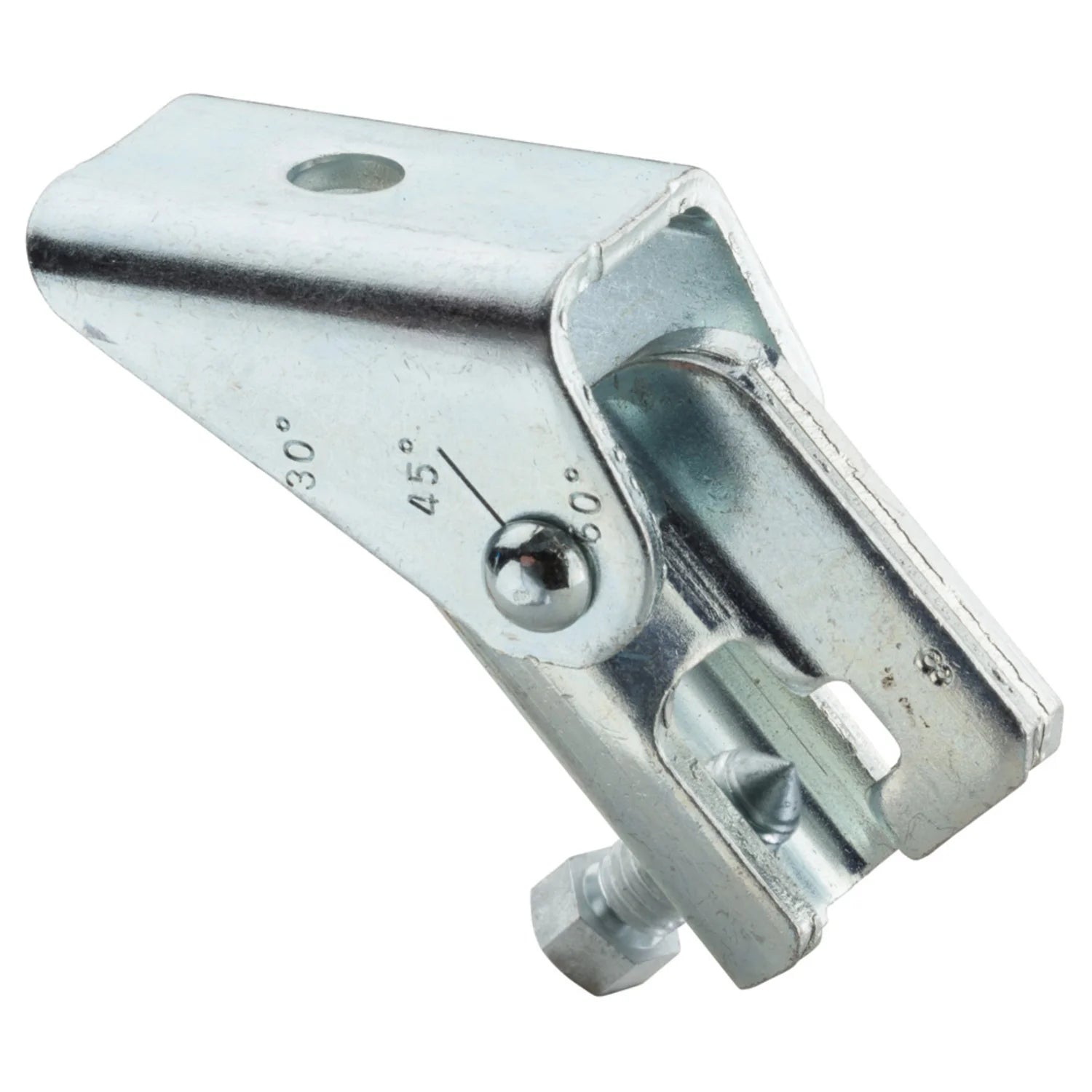

Erico CSBU1 Universal Structural Bracket, EG, 9/16 inches Hole

Product Description

The ERICO CSBU1 universal structural bracket is a code-compliant structural attachment designed to provide superior performance and meet seismic load requirements. Its versatile design allows for quick and easy installation directly to concrete, wood, bar joist, or I-beam adapters and is compatible with 1" through 2" brace pipes. The snap-off bolt simplifies inspection of seismic sway braces.

• Universal design allows attachment directly to concrete, wood, bar joist or I-beam adapters
• Integrated angle gauge easily displays brace member angle of installation
• Snap-off bolt head helps enable easy installation and inspection of seismic sway braces

Product Highlights

This structural bracket's low profile minimizes prying effect on concrete fasteners. It meets NFPA 13 as pre-qualified for seismic applications and is FM Approved.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: CSBU1

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Hole Size (HS): 9/16"
• Width (W): 1 15/16"
• Thickness (T): 3/16"
• A: 2 1/16"
• B: 1 5/16"
• C: 1 3/8"
• D: 1 1/4"
• E: 1 3/4"
• UL Listed Load: 2000lb
• Approvals: OSHPD/HCAI, UL, cUL, FM Approved, Seismic, AON Fire Protection, Seismic Bracing Components
• Specifications - FM Approved: Yes
• Specifications - UL Listed: Yes
• Work Load Limit: 3000 lb
• Product Type: Corner Brackets
