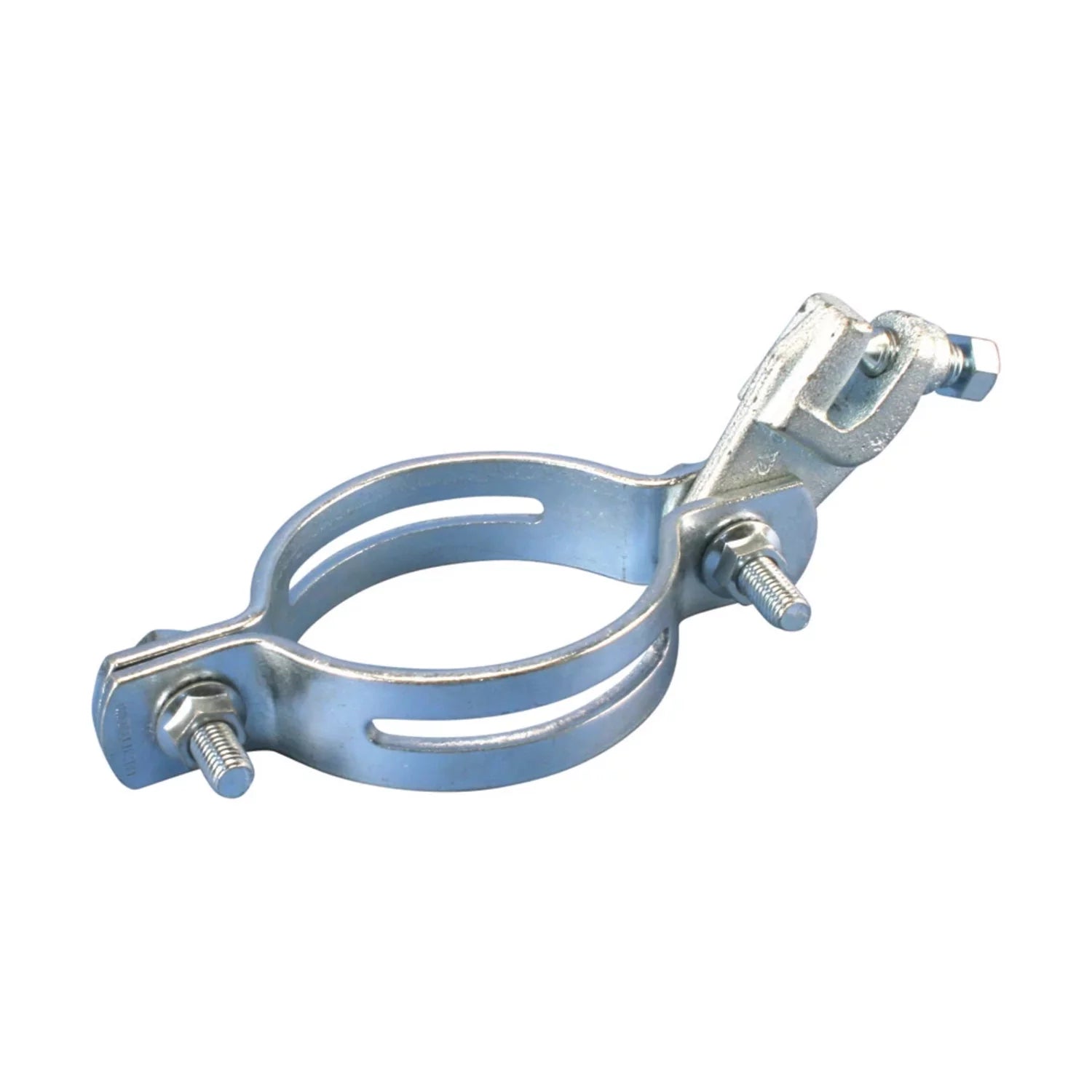

Erico CSBSTU0400EG Standard Universal Sway Brace 4 Inches

Product Description

The Erico CSBSTU0400EG standard universal sway brace is designed for lateral and longitudinal applications. This brace has a snap-off bolt head that simplifies installation, making it a reliable choice for seismic sway bracing. It can accommodate brace pipes from one inch to two inches.

• Use for both lateral and longitudinal sway brace applications
• Features a snap-off bolt head for easy installation and inspection
• Compatible with one inch through two inch brace pipes to minimize inventory needs

Product Highlights

This sway brace provides a slotted design that enhances grip on service pipes, ensuring stability and compliance with industry standards.

Product Information

Standard Information

• Material: Steel, Cast Iron
• Finish: Electrogalvanized

Technical Specifications

• Pipe Size: four inches
• NB/DN: 100
• A: 269.9 mm
• B: 38.1 mm
• Certifications: UL, FM Approved, Seismic, AON Fire Protection
• Brace Pipe Size: one inch - two inches
• UPC: 782856634553
• GTIN: 8711893128192
• Standard Packaging Quantity: 10
• Packing Quantity: 1
• Brace NB/DN: 25 - 50 mm
• Country Of Origin: CN
• Order Minimum: 1 EA
• Order Multiple: 1 EA
• RoHS Compliance: No
• Stock Type: Shelf Stock
• UNSPSC: 40141725
