Erico CSB0400 4 inches Single Pipe/Conduit Rigid Universal Sway Brace

Product Description

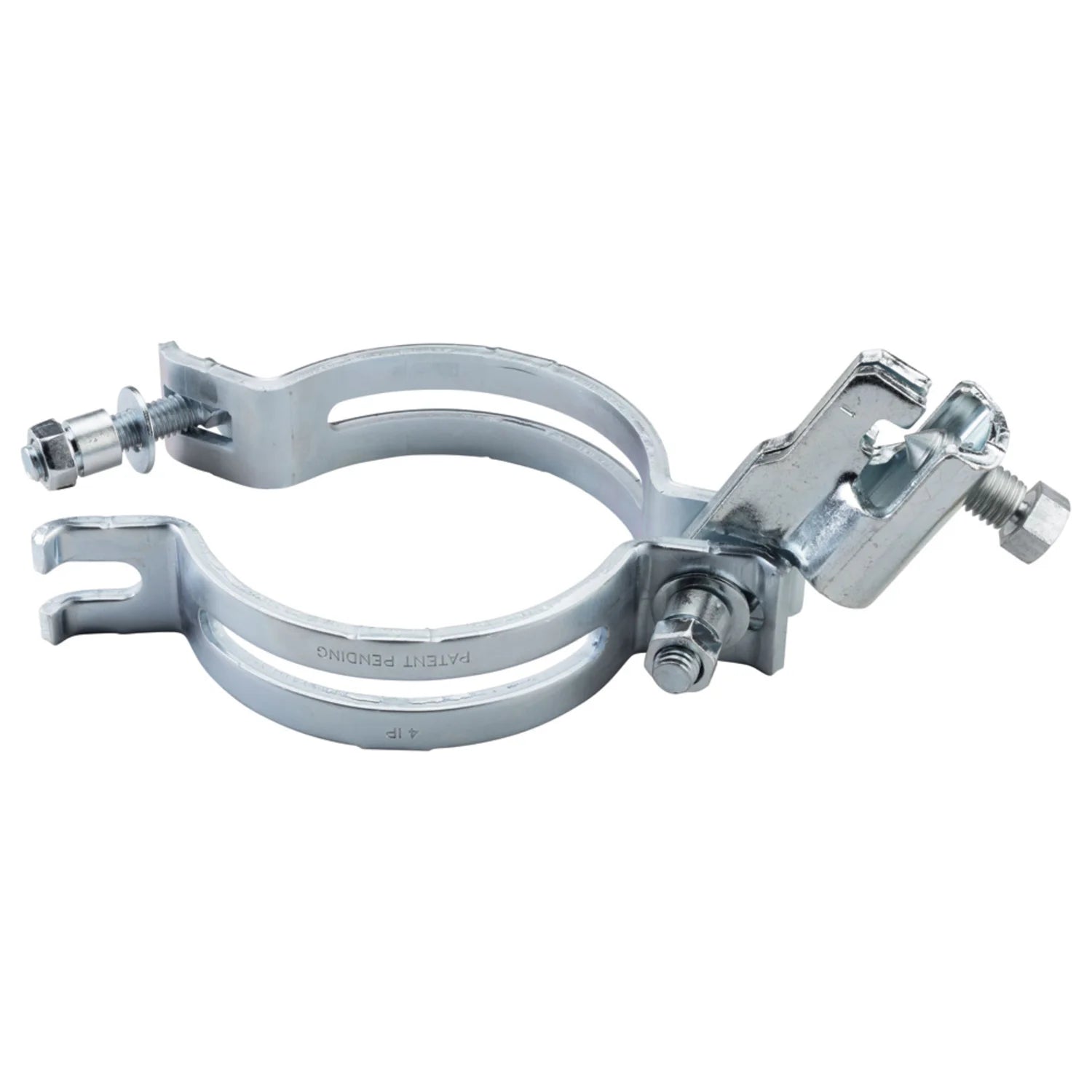

The ERICO CSB0400 universal sway brace provides seismic bracing for suspended pipes. It features a unique slotted hole pattern for easy slip-on installation, eliminating loose hardware. It meets NFPA-13 and CEN/TS 1755:2021 requirements for seismic sway bracing and is FM Approved with Type A Solid Strut and 1-2 in Sch40/EN 10255H Pipe.

• Used for both lateral and longitudinal sway brace applications
• Snap-off bolt head helps enable easy installation and inspection
• Works with 1" to 2" brace pipes to reduce inventory

Product Highlights

Universal sway brace for suspended pipes, featuring easy installation and compliance with seismic bracing standards.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: CSB0400
• Country of Origin: Canada

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Pipe Size, Nominal (Ø): 4"
• Brace Pipe Size: 1" - 2"
• Width (W): 1 1/2"
• A: 3 9/16"
• B: 1 5/16"
• C: 11/16"
• D: 8 1/2"
• UPC: 782856920205
• EAN: 0782856920205
• Standard Packaging Quantity: 10
