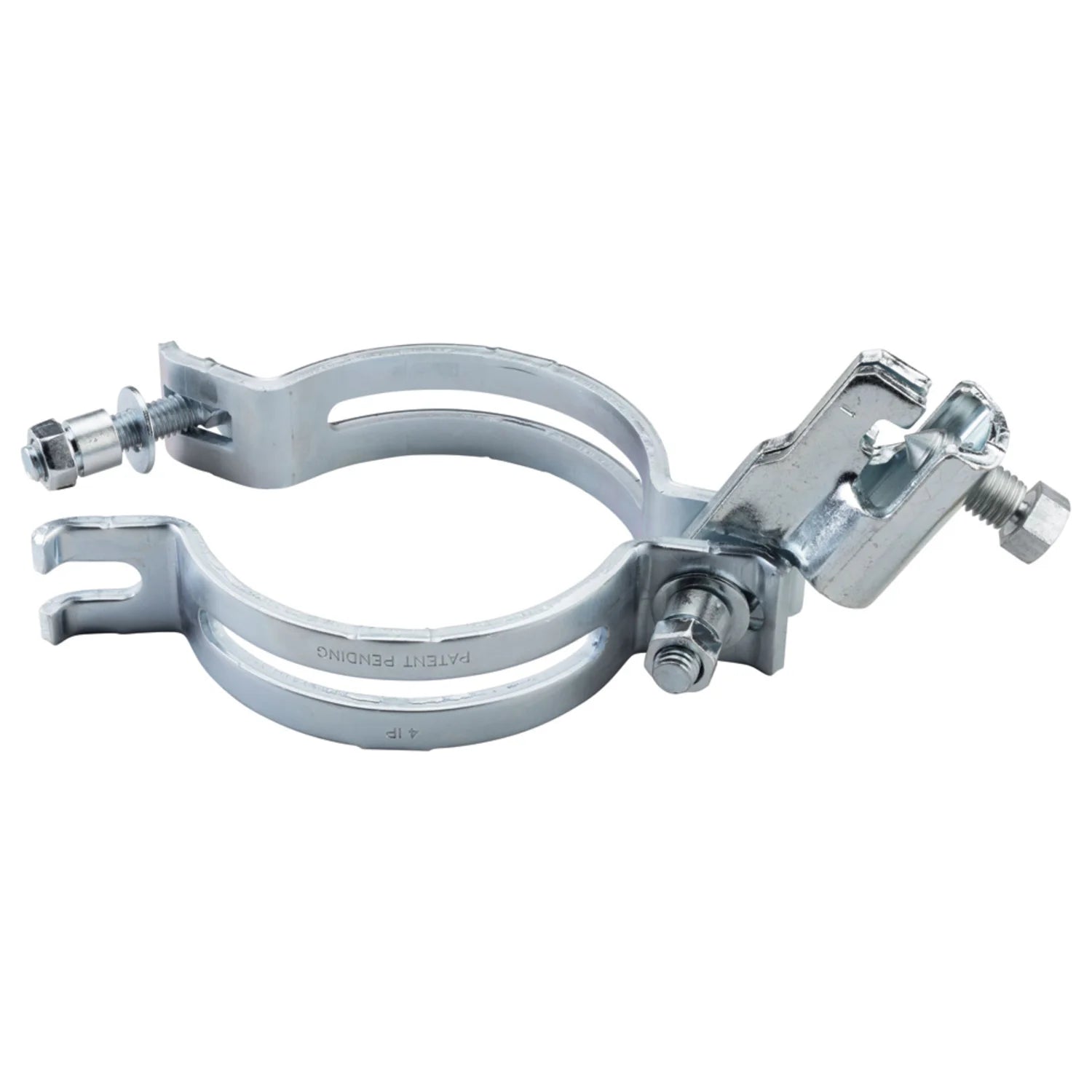

Erico CSB0250 Universal Sway Brace, EG, 2 1/2 inches Pipe

Product Description

The ERICO CSB0250 universal sway brace is a versatile solution for seismic bracing of suspended pipes. Featuring a unique slotted hole pattern for easy slip-on installation, it eliminates the need for loose hardware. It meets NFPA-13 and CEN/TS 1755:2021 requirements for seismic sway bracing.

• Used for both lateral and longitudinal sway brace applications
• Snap-off bolt head helps enable easy installation and inspection
• Works with 1" to 2" brace pipes to reduce inventory

Product Highlights

Innovative sway brace ensures safety and compliance with easy installation.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: CSB0250

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Pipe Size, Nominal (Ø): 2 1/2"
• Brace Pipe Size: 1" - 2"
• Width (W): 1 1/2"
• A: 3 9/16"
• B: 1 5/16"
• C: 15/16"
• D: 6 3/4"
• UPC: 782856920182
• EAN: 0782856920182
• Article Number: 404520
• Pipe Size, Nominal: 63.5mm
• NB/DN: 65
• Brace NB/DN: 25 – 50mm
