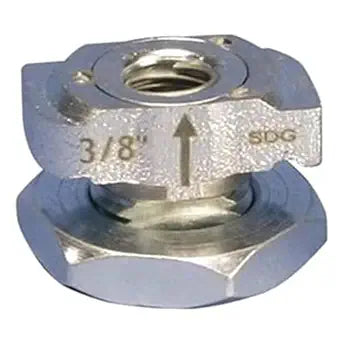

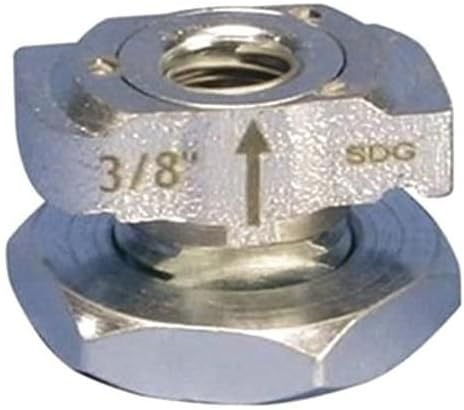

Erico CRLS37EG Rod Lock Channel Nut 3/8 Inch

Product Description

The ERICO CRLS37EG Rod Lock Channel Nut provides fast universal attachment of threaded rod and hardware to standard strut profiles. It can be used to prefabricate assemblies which can be quickly pushed onto previously installed threaded rods. This channel nut works with slightly damaged threads and minor burrs on the threaded rod.

• Provides Fast Universal Attachment of Threaded Rod and Hardware to Standard Strut Profiles
• Can be Used to Prefabricate Assemblies Which Can be Quickly Pushed Onto Previously Installed Threaded Rods
• Works with Slightly Damaged Threads and Minor Burrs on the Threaded Rod

Product Highlights

The CRLS37EG channel nut is made of cast iron with electrogalvanized finish and a nominal diameter of 3/8 Inch.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: CRLS37EG
• Country of Origin: CHN

Technical Specifications

• Finish: Electrogalvanized
• Manufacturer Name: Erico
• Material: Cast Iron
• Material Specification: ASTM A48-76
• Nominal Diameter: 3/8 Inch
• Product UPC: 78285664946
• Thickness: 0.91 Inch
• Width: 1.4 Inch
• Height: 0.91 Inch
• Static Load Rating: 750 Pound
• Fastener Type: Lock
• Thread Size: 3/8 Inch
• Exterior Finish: Zinc
• Metal Type: Iron
• Brand: Erico
• Thread Type: Unified National Coarse (Unc)
• Thread Style: UNC
• Thread Class: Class 2A
• Size: 3/8 Inch x 1.4 Inch
• Item Diameter: 0.38 Inches
• Manufacturer: Erico
• Rod Size (RS): 3/8"
• B: 1.4"
• C: 0.77"
• D: 0.53"
• Length (L): 0.91"
• Static Load (F): 750lbf
• UPC: 782856649465
• EAN: 0782856649465
• UNSPSC Code: 31160000
