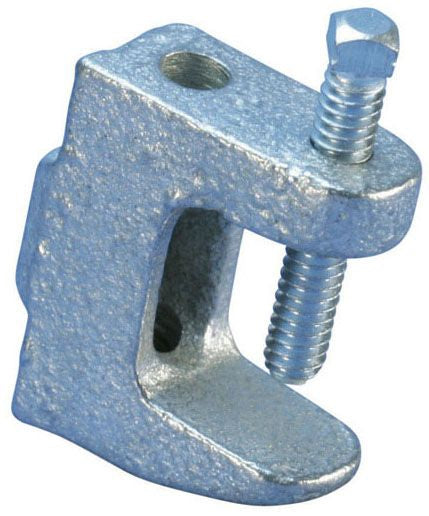

ERICO BC260025EG CAD Beam Clamp 1/4 Mall Beam Clamp

Product Description

The ERICO BC260025EG is a beam clamp designed for heavy-duty applications. This clamp has a maximum jaw capacity of thirteen sixteenths inches. It is suitable for mounting on beams and other structural supports. The clamp is made from cast iron which provides durability and strength.

• Maximum load capacity is two hundred fifty pounds.
• Comes with a screw size of one fourth inches.
• Meets ANSI/MSS-SP-58 Type 19/23 standards.

Product Highlights

The BC260025EG beam clamp is ideal for professionals working in construction and electrical services, providing reliable support and easy installation.

Product Information

Standard Information

• Manufacturer: ERICO
• UPC: 78285634025

Technical Specifications

• Jaw Depth: thirteen sixteenths inches
• Flange Thickness: thirteen sixteenths inches
• Rod Size: one fourth inches
• Finish: Electrogalvanized
• Load Capacity: two hundred fifty pounds
• Applicable Standards: Federal Specification WW-H-171 Type 23, ANSI/MSS-SP-58 Type 19/23, Approved by UL (Canada and US)
