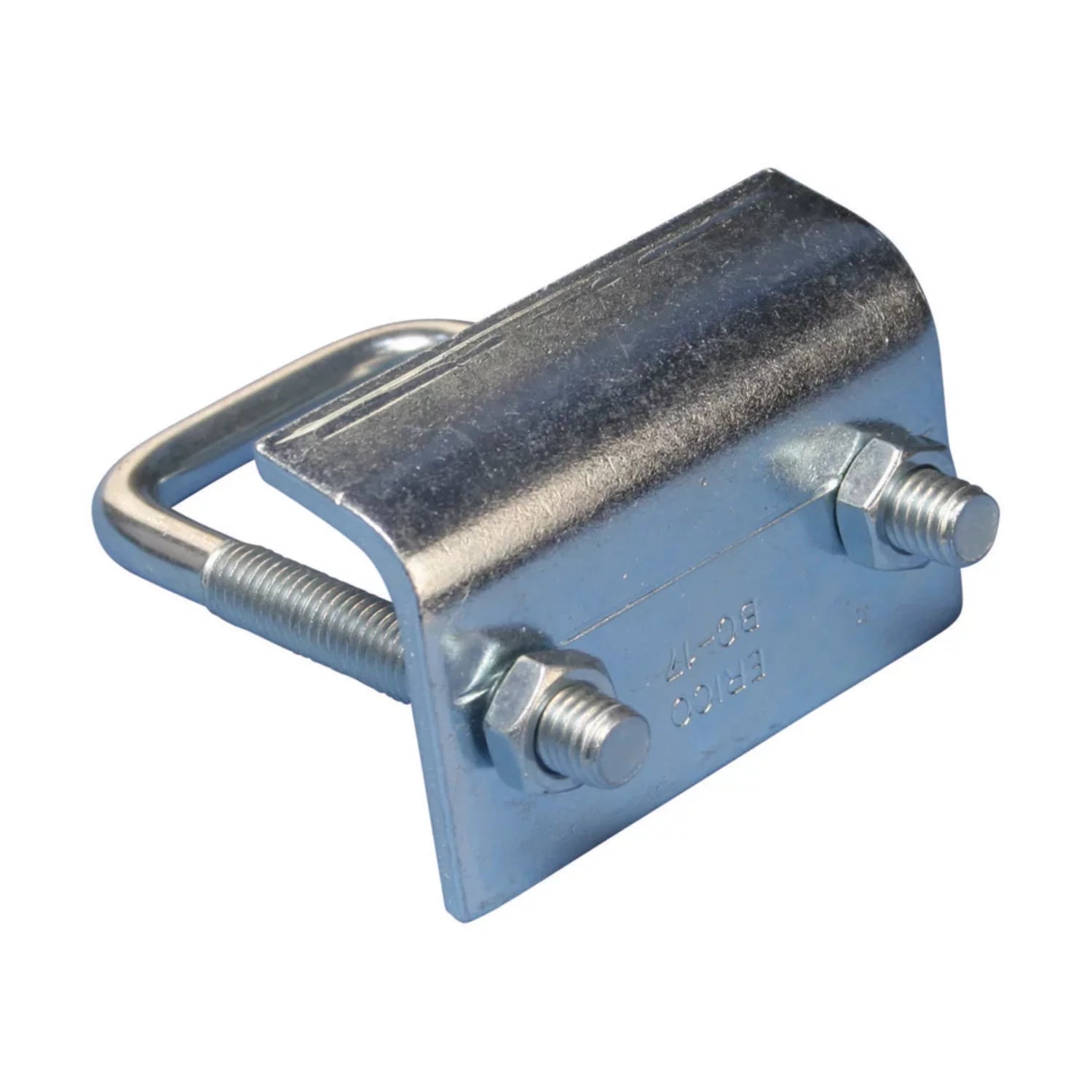

ERICO BC17A000EG Strut Beam Clamp with U-Bolt Steel

Product Description

The ERICO BC17A000EG is a strut beam clamp made from steel and designed for A and C struts. This clamp includes a U-bolt and is finished with electrogalvanization for durability. It can support a maximum static load of 1200 lbf and is suitable for rods with a diameter of three eighths inches. The clamp accommodates a maximum flange thickness of thirteen sixteenths inches.

• Constructed from steel with an electrogalvanized finish
• Supports static loads up to 1200 lbf
• Compatible with A and C struts

Product Highlights

The product is essential for securely fastening A and C struts in various applications.

Product Information

Standard Information

• Material: Steel
• Finish: Electrogalvanized

Technical Specifications

• Strut Type: A (1 5/8 inches x 1 5/8 inches); C (13/16 inches x 1 5/8 inches)
• Rod Size: 3/8 inches
• Flange Thickness: Maximum of 13/16 inches
• Width: 3 inches
• Thickness: 1/4 inches
• Static Load: 1200 lbf
• UPC: 782856340171
• EAN: 0782856340171
• Standard Packaging Quantity: 25
• Packing Quantity: 1
• Load Capacity: 1200 lb
• Flange Width: 3 inches
