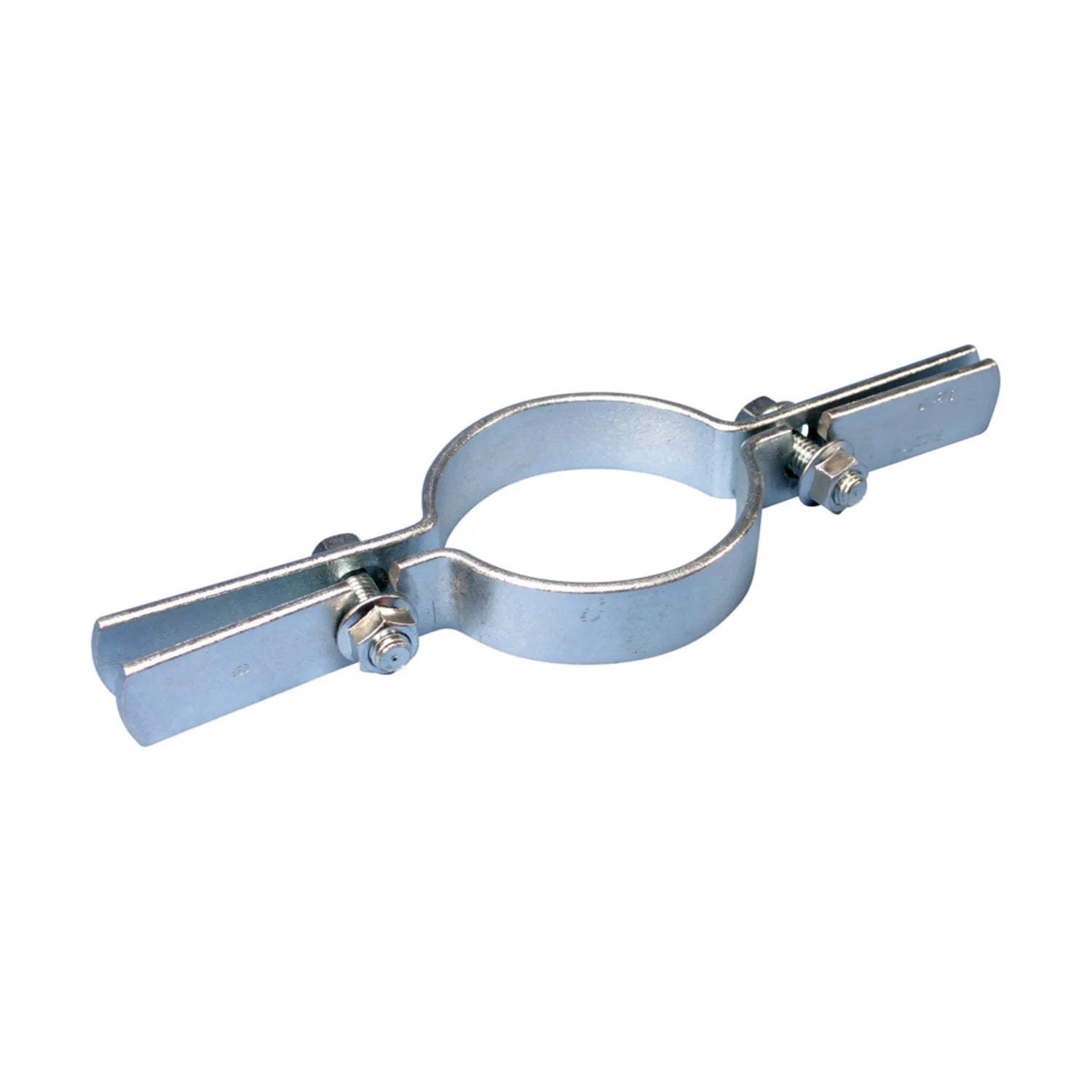

Erico 5100800EG CADDY EZ riser, steel, EG, 8 inches pipe, 8.625 inches OD

Product Description

The ERICO 5100800EG CADDY EZ Riser is a quick-closing pipe clamp designed for supporting vertical steel pipe. This ready-to-use solution features slotted holes for simplified assembly, eliminating the need for loose hardware. The serrated washer-head design allows for easy tightening with a single tool. Ideal for applications where space is available.

• Only one tool needed to tighten due to serrated wash-heads
• Conforms with Federal Specification WW-H-171 (Type 8), Manufacturers Standardization Society (MSS) SP-58 (Type 8)

Product Highlights

Supports vertical steel pipe with easy assembly and single-tool tightening.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 5100800EG

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Pipe Size: 8"
• Outer Diameter (OD): 8.625 inches
• Hole Size (HS): 0.67 inches
• A: 18.27 inches
• B: 2.01 inches
• Static Load (F): 2500lb
• NB/DN: 200
• Static Load: 11100N
• Certifications: UL, cUL
