Erico 5100600EG Caddy Ez Riser, Steel, EG, 6 inches Pipe, 6.625 inches OD

Product Description

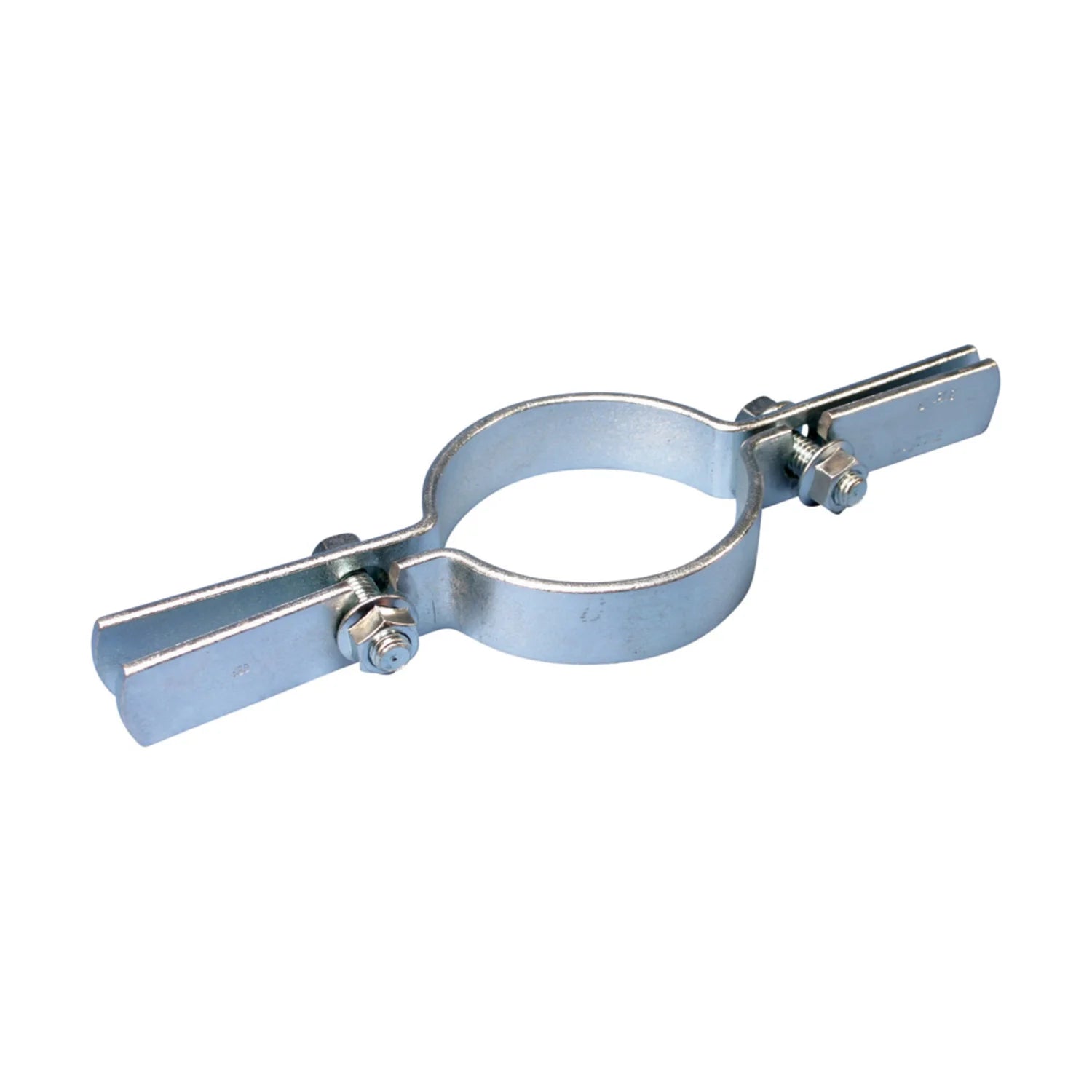

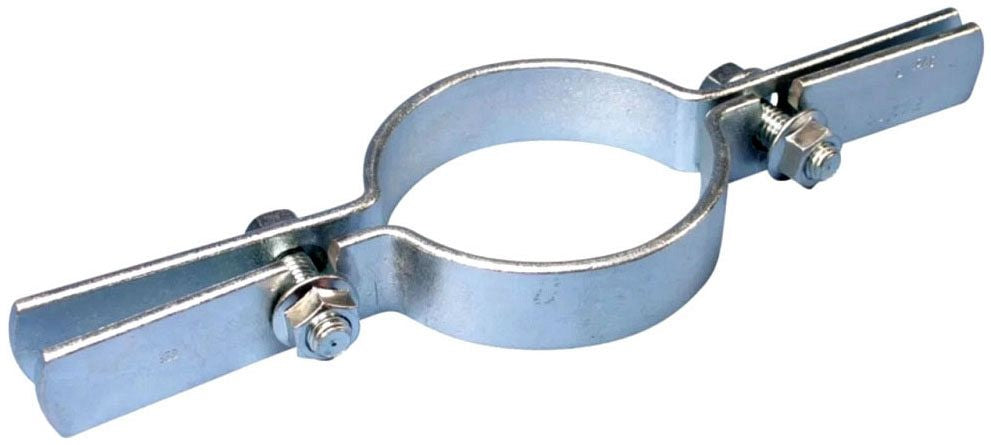

The ERICO 5100600EG CADDY EZ RISER is a quick-closing pipe clamp designed for supporting vertical steel pipe where space is available. It features slotted holes to simplify assembly and eliminate loose hardware. The serrated washer-head design allows for easy assembly with just a single tool. This riser clamp installs quickly, saving time during installation.

• Only one tool needed to tighten due to serrated wash-heads
• Conforms with Federal Specification WW-H-171 (Type 8), Manufacturers Standardization Society (MSS) SP-58 (Type 8)
• Recommended for suspending vertical steel pipe risers

Product Highlights

The 510 riser clamp from nVent ERICO simplifies installations when suspending vertical steel pipe risers.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 5100600EG
• Country of Origin: Import

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Pipe Size: 6"
• Outer Diameter (OD): 6 5/8"
• Hole Size (HS): 9/16"
• Static Load (F): 1570lb
• Load Capacity: 1570 lb Static
• Series: 510
