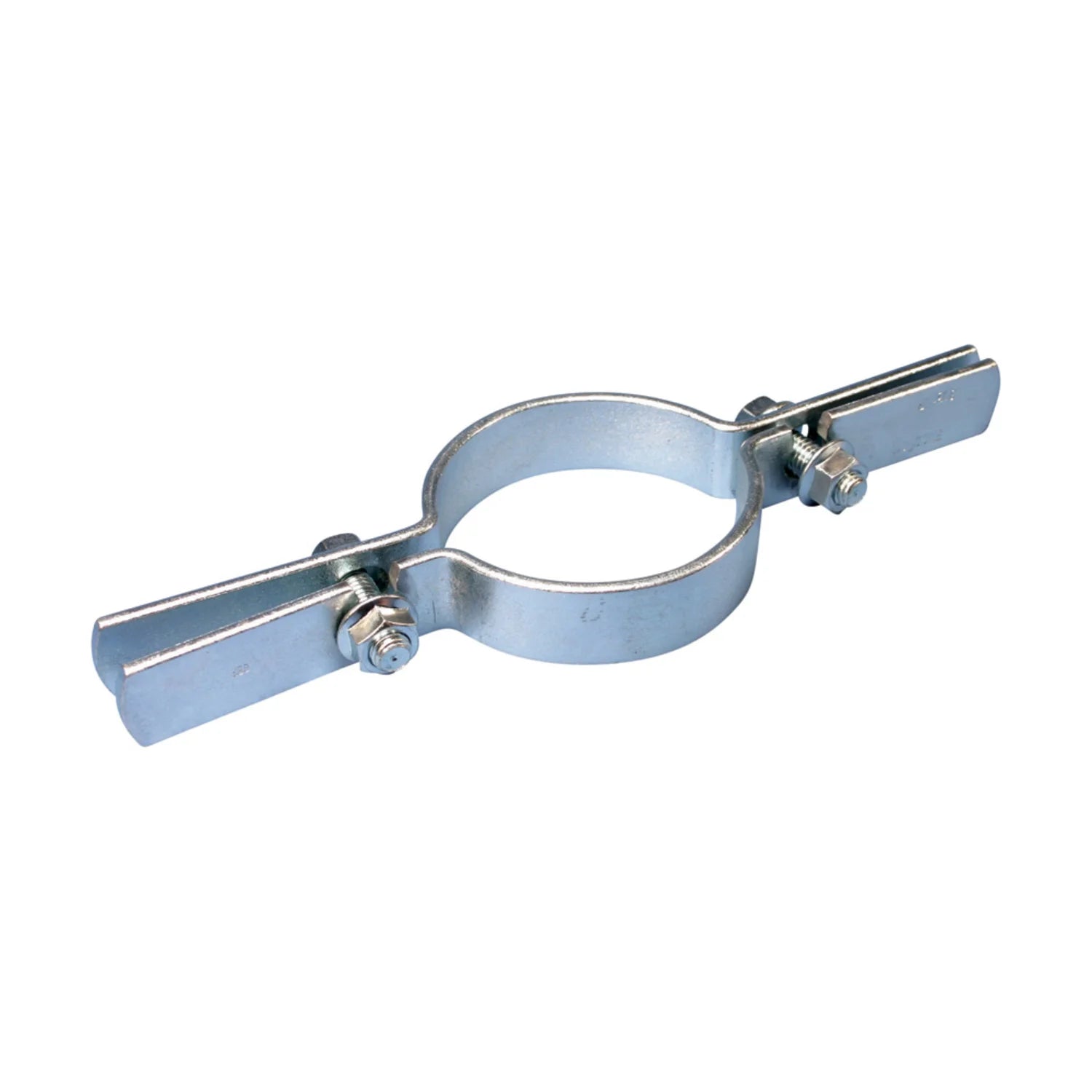

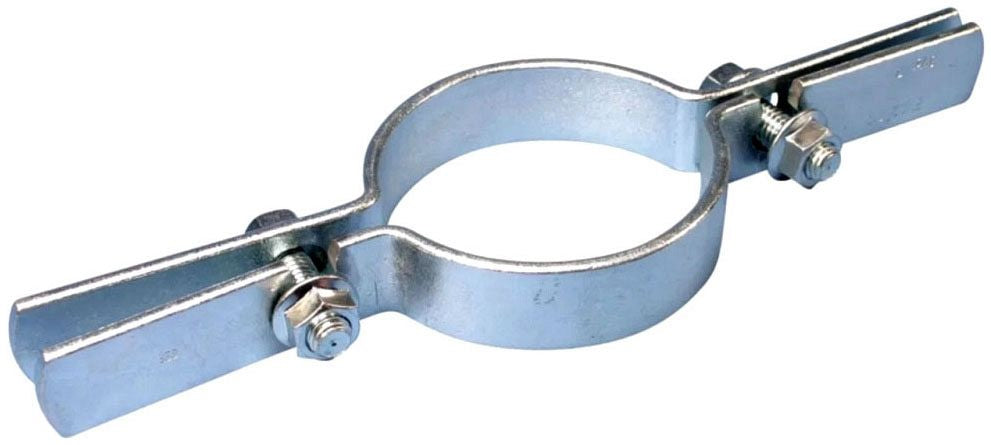

Erico 5100300EG Caddy Ez Riser, Steel, EG, 3 inches Pipe, 3.5 inches OD

Product Description

The ERICO 5100300EG Caddy EZ Riser is a quick-closing pipe clamp made of steel with an electrogalvanized finish, ideal for supporting vertical steel pipe. It features slotted holes to simplify assembly and eliminate loose hardware. Installers can easily assemble the EZ Riser with just a single tool due to the serrated washer-head design.

• Only one tool needed to tighten due to serrated wash-heads
• Conforms with Federal Specification WW-H-171 (Type 8), Manufacturers Standardization Society (MSS) SP-58 (Type 8)
• Recommended for suspending vertical steel pipe risers

Product Highlights

The 510 riser clamp has slotted holes to allow easy installation. The special serrated flange head bolts eliminate the need for wrenches.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 5100300EG
• Country of Origin: CHN

Technical Specifications

• Brand: Erico
• Manufacturer: ERICO
• MPN: CAD5100300EG
• Product Type: MECHANICAL_FASTENERS
• Product Group: BISS
• Pipe Size: 3"
• Outer Diameter (OD): 3 1/2"
• Hole Size (HS): 7/16"
• A: 11 3/4"
• B: 1 3/16"
• Static Load (F): 530lb
• UPC: 782856369356
• EAN: 0782856369356
• Finish: Electrogalvanized Zinc
• Load Capacity: 530 lb
• Material: Steel
• Series: 510
• Domestic/Import: Import
• Outside Diameter: 3-1/2 in
• Bolt Size: 3/8-16 x 1-1/2 in
• Item Name: E-Z Riser Clamp
• Nominal Size: 3 in
