Erico 5100200EG Caddy Ez Riser, Steel, EG, 2 inches Pipe, 2.375 inches OD

Product Description

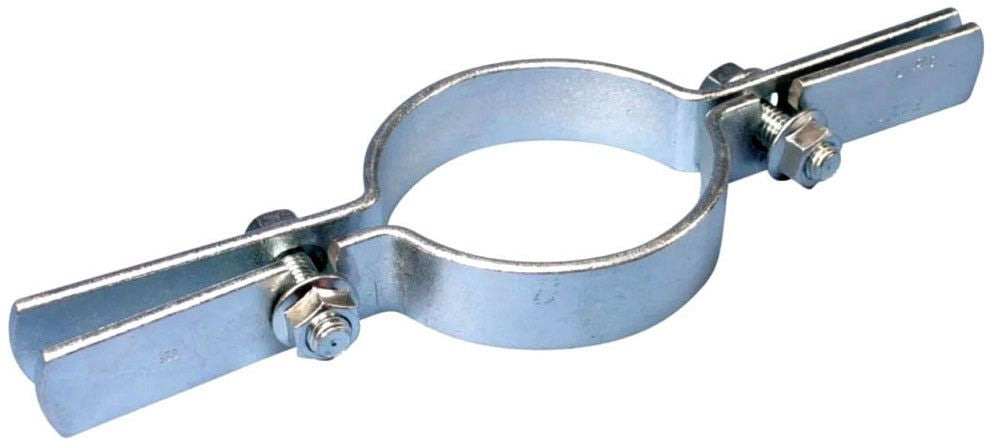

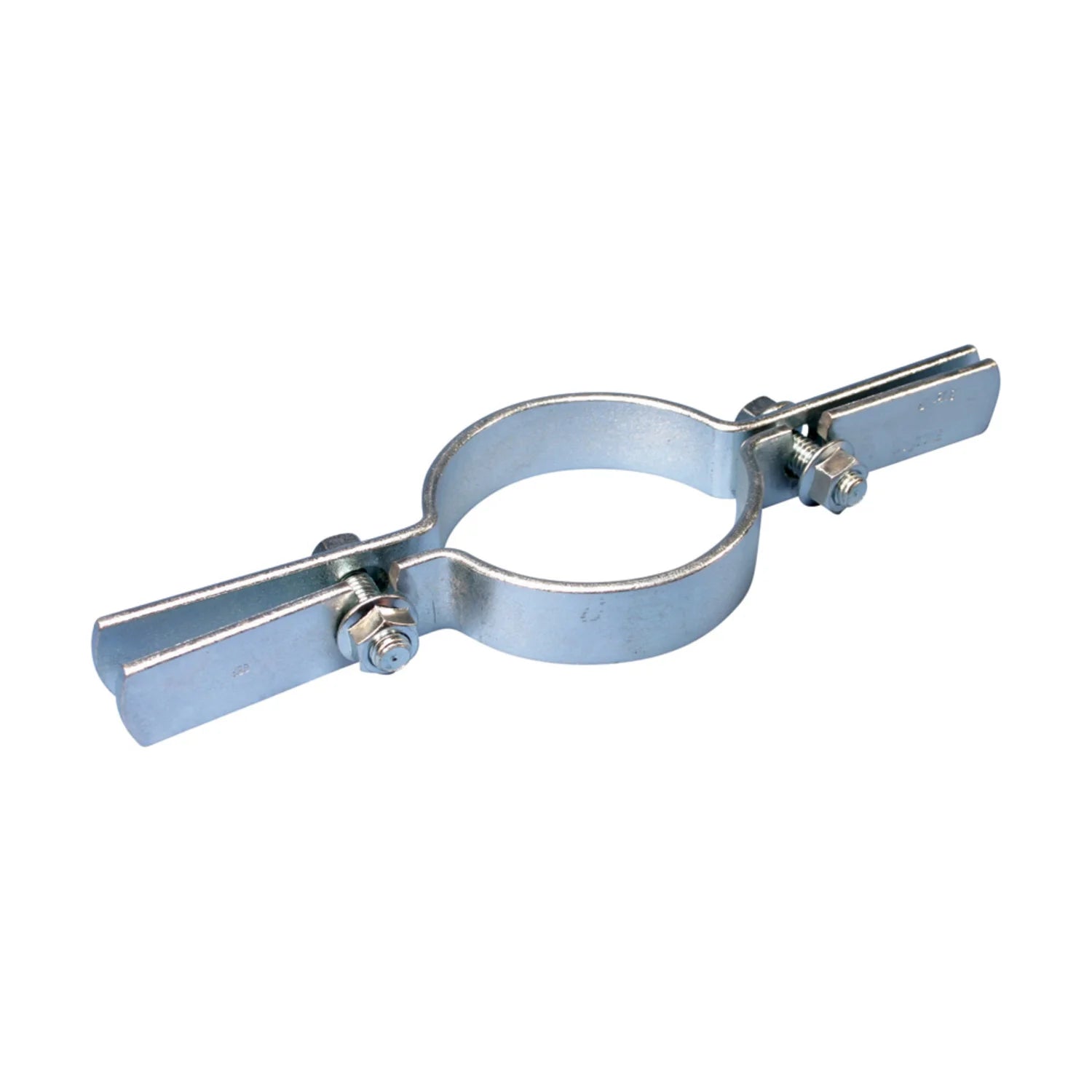

The ERICO 5100200EG Caddy EZ Riser is a steel, electrogalvanized pipe clamp designed for supporting vertical steel pipes. It is a quick-closing, two-piece clamp suitable where space is available. The clamp features slotted holes for simplified assembly and eliminates loose hardware. It conforms with Federal Specification WW-H-171 (Type 8) and MSS SP-58 (Type 8).

• Only one tool needed to tighten due to serrated wash-heads
• Slotted holes make assembly easy, eliminating loose hardware
• Recommended for suspending vertical steel pipe risers

Product Highlights

The 5100200EG Caddy EZ Riser simplifies the installation of vertical steel pipe risers with its easy assembly and durable construction.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 5100200EG
• Country of Origin: CHN

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Pipe Size: 2"
• Outer Diameter: 2.375"
• Hole Size: 7/16"
• Static Load: 255lb
• UPC: 782856369325
• EAN: 0782856369325
• Series: 510
• Load Capacity: 255 lb Static
