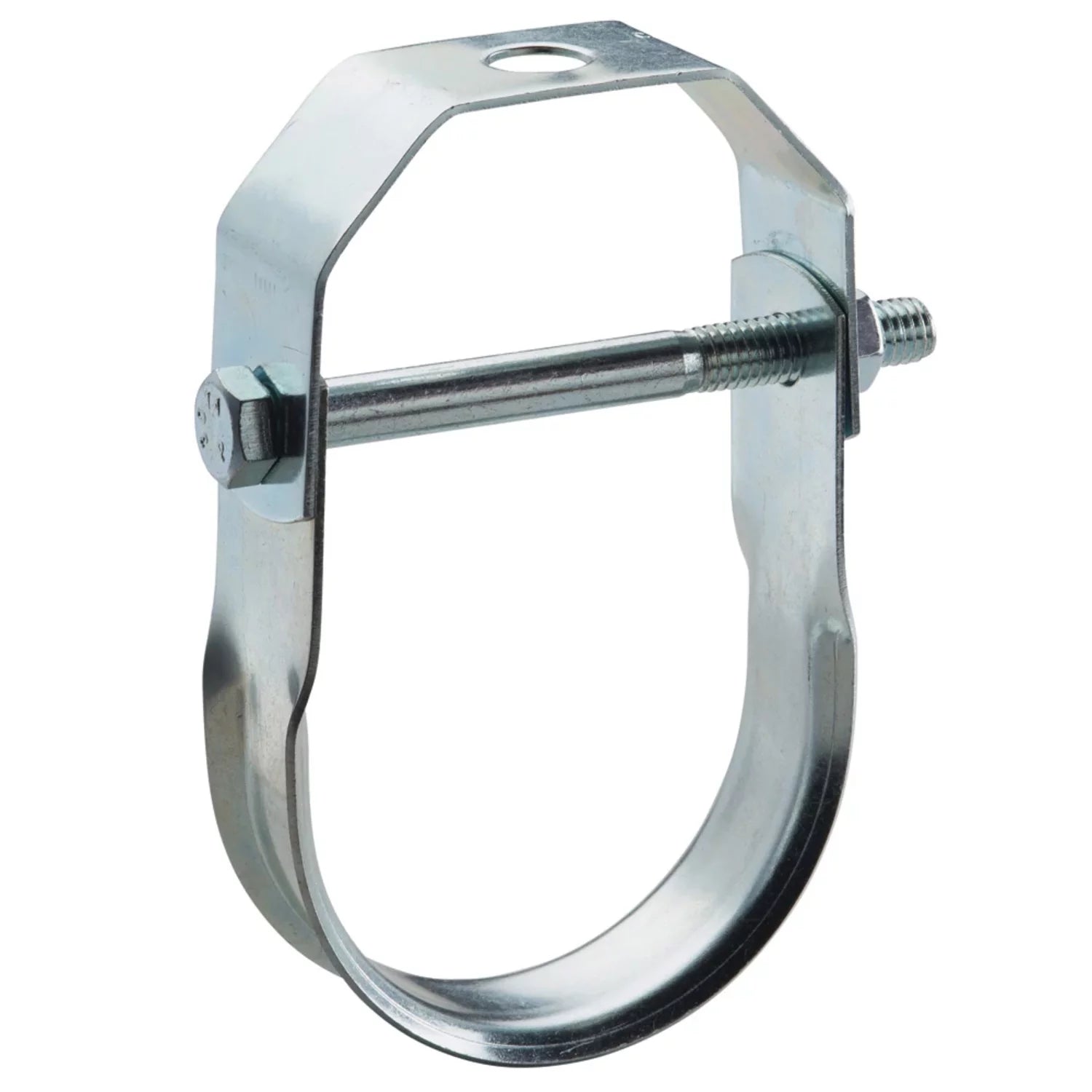

ERICO 4100350EG 410 Clevis Hanger Light Duty

Product Description

The ERICO 4100350EG 410 Clevis Hanger supports both insulated and non-insulated stationary pipe lines. Flared edges are designed to avoid sharp contact with pipes, making it suitable for pipe sizes ranging from one half inch to eight inches. The clevis bottom allows for easy pipe feeding from either direction. This product meets Federal Specification WW-H-171 (Type 12) and MSS SP-58 (Type 1).

• Ideal for suspending non-insulated pipe lines
• Works well with insulated pipe lines
• Flared edges protect pipes from sharp surfaces

Product Highlights

Product Information

Standard Information

• Finish: Electrogalvanized; Pregalvanized
• Material: Steel

Technical Specifications

• Pipe Size: 3 1/2 inches
• Outer Diameter (OD): 4 inches
• Rod Size (RS): 1/2 inch
• A: 6 13/16 inches
• B: 4 inches
• C: 1 5/16 inches
• Static Load (F): 400 pounds
• Certifications: UL, cUL
