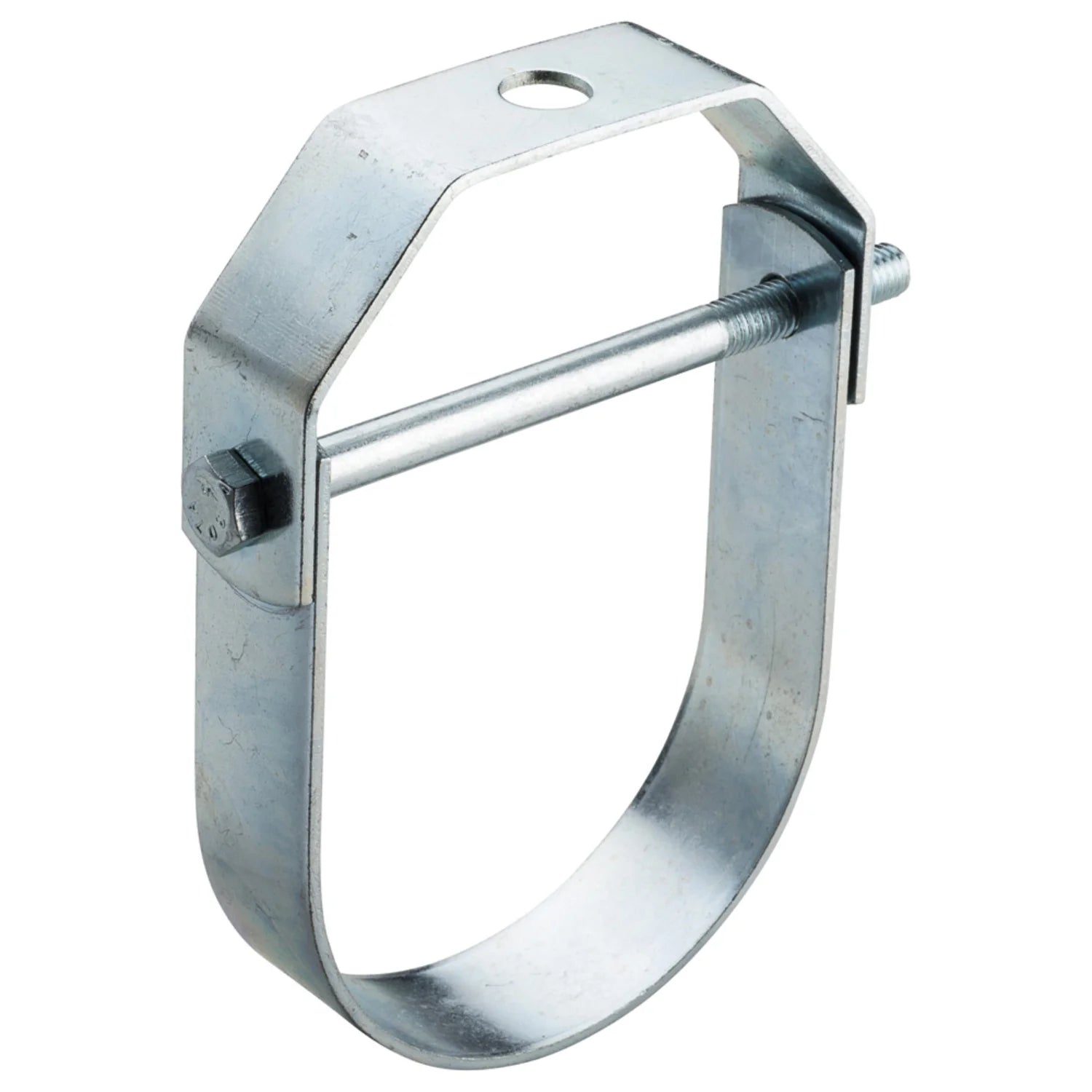

Erico 4011200EG 401 Clevis Hanger 12 inches Pipe

Product Description

The ERICO 4011200EG 401 Clevis Hanger is recommended for suspending stationary non-insulated pipe lines. Flared edges help prevent sharp surfaces from contacting the pipe, especially in 1/2" to 2" pipe sizes. The clevis bottom pivots, allowing pipe to be fed from either direction. It conforms to Federal Specification WW-H-171 (Type 1) and MSS SP-58 (Type 1).

• Recommended for the suspension of stationary non-insulated pipe lines
• Flared edges help prevent sharp surfaces from coming into contact with the pipe (1/2" to 2" pipe sizes)
• Clevis bottom pivots to allow pipe to be fed from either direction

Product Highlights

The ERICO 4011200EG clevis hanger is designed for suspending stationary non-insulated pipe lines, featuring flared edges and a pivoting clevis bottom.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 4011200EG

Technical Specifications

• Material: Steel
• Catalog Number: 4011200EG
• Finish: Electrogalvanized, Pregalvanized
• Pipe Size: 12"
• Outer Diameter (OD): 12 3/4"
• Rod Size (RS): 7/8"
• A: 18 5/8"
• B: 10 3/16"
• C: 3 1/16"
• Static Load (F): 3800lbf
• Certifications: ITB
• Load Rating: 3800 lb (Static)
• Type: Clevis Hanger
