Erico 4010500EG Clevis Hanger 5 Inch

Product Description

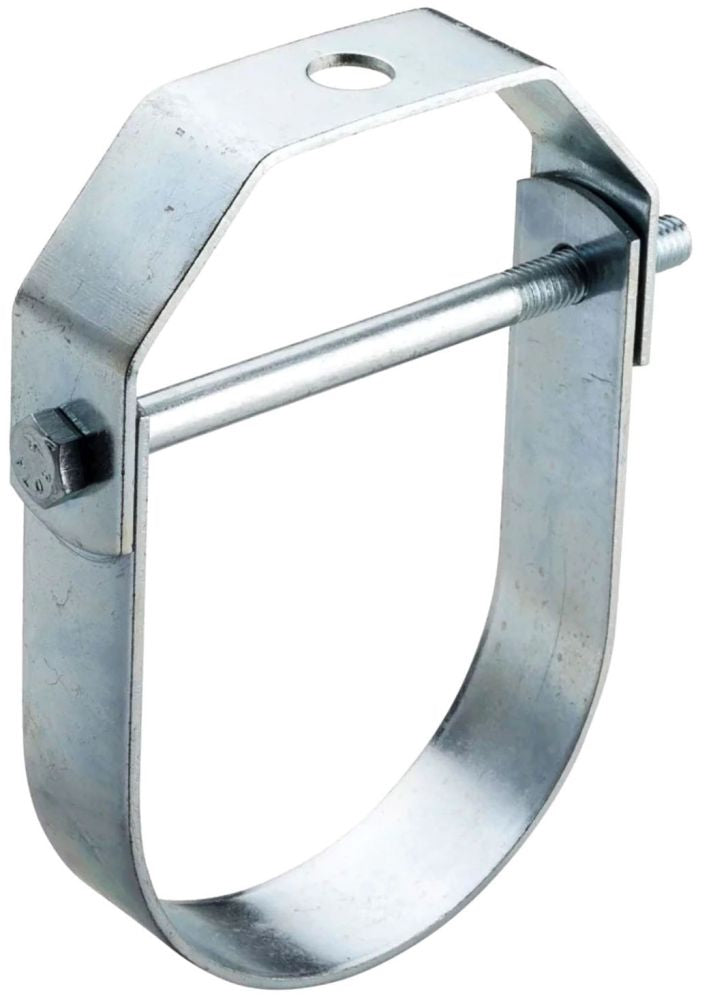

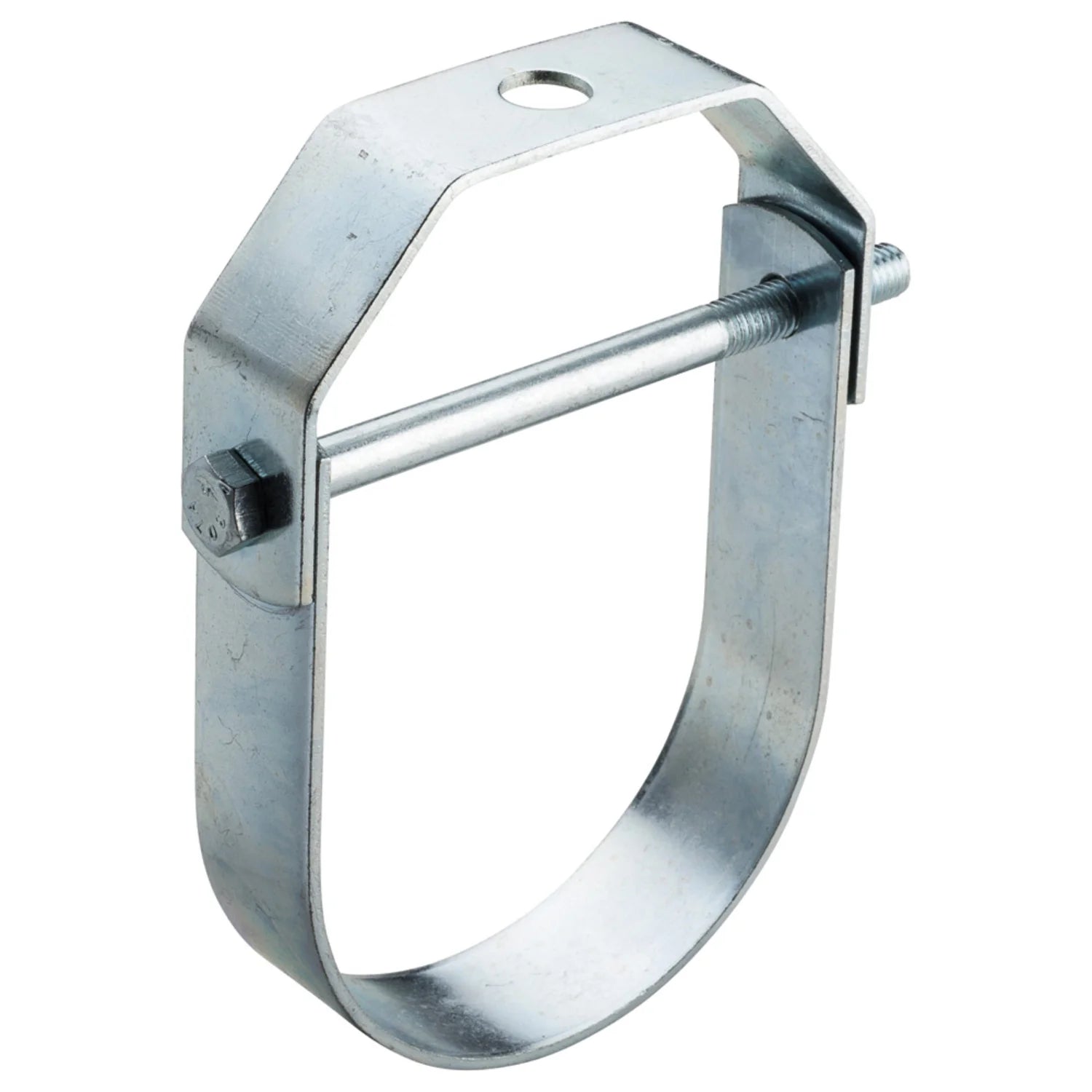

The ERICO 4010500EG clevis hanger is designed for suspending stationary non-insulated pipe lines. Constructed from steel with an electrogalvanized finish, it supports a static load of 1430 pounds. This hanger fits a 5-inch pipe size and features a 5/8 inch hanger mounting size and 9-1/16 inch height.

• Minimum and maximum pipe size of 5 inches
• Features a 5/8 inch hanger mounting size
• Complies with UL (Canada and US), FM, WW-H-171 Type 1, and MSS-SP-58 Type 1 standards

Product Highlights

Designed for suspending stationary non-insulated pipe lines, the ERICO 4010500EG clevis hanger provides reliable support and meets industry standards.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 4010500EG
• Country of Origin: CHN

Technical Specifications

• Type: Clevis
• Minimum Pipe Size: 5 Inch
• Maximum Pipe Size: 5 Inch
• Hanger Mounting Size: 5/8 Inch
• Height: 9-1/16 Inch
• Material: Steel
• Finish: Electrogalvanized;Pregalvanized
• Load Rating: 1430 Pound (Static)
• Applicable Standard: UL (Canada and US), FM, WW-H-171 Type 1, MSS-SP-58 Type 1
• Outer Diameter (OD): 5 9/16"
• Centerline Distance: 5-1/8 Inch
• Pipe Size: 5"
• Rod Size (RS): 5/8"
• A: 9 1/16"
• B: 5 1/8"
• C: 1 5/8"
• Static Load (F): 1430lbf
• UPC: 782856356264
• EAN: 8711893038170
• Static Load: 6400N
• Certifications: ITB, UL, cUL
