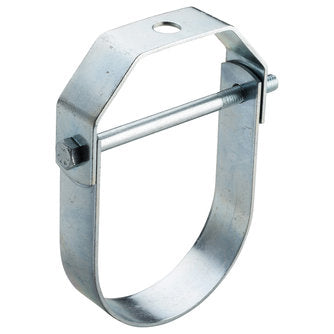

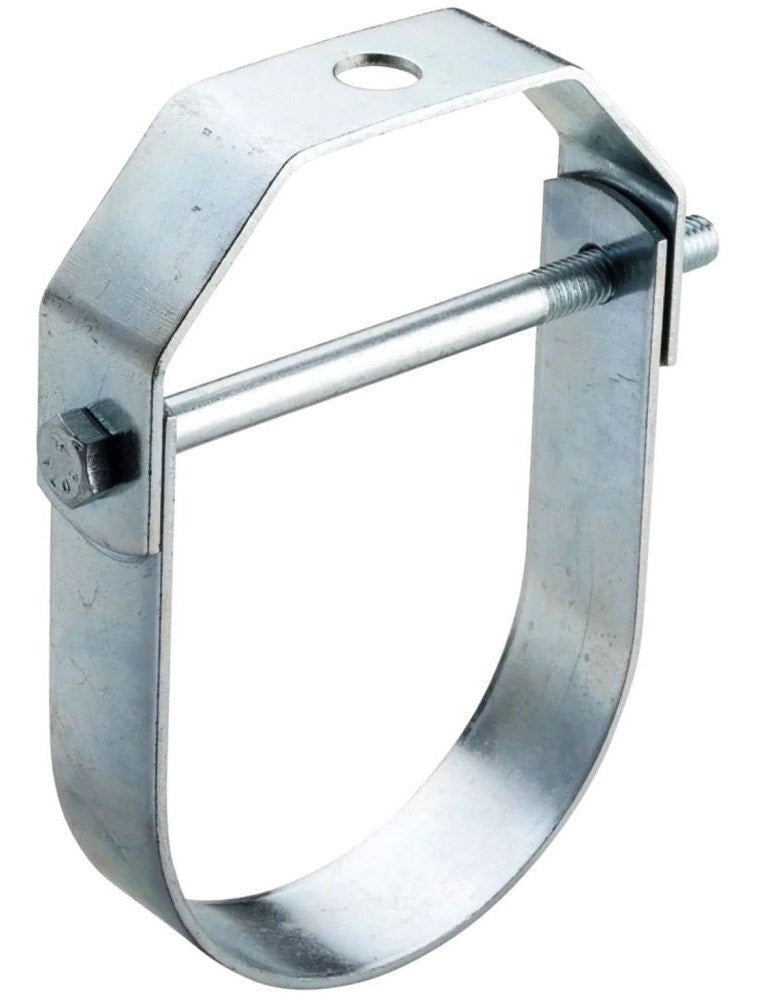

Erico 4010300EG 401 Clevis Hanger 3 inches Pipe, 3.5 inches OD, 1/2 inches Rod

Product Description

The ERICO 4010300EG 401 Clevis Hanger is designed to support non-insulated stationary pipe lines. This hanger fits a 3" pipe with a 3.5" outer diameter and a 1/2" rod. It features an adjustable height and is rod mountable, with a load rating of 1130 lb.

• Adjustable Height
• Rod Mount
• Supports non-insulated stationary pipe lines

Product Highlights

The ERICO 4010300EG clevis hanger is suitable for supporting stationary pipe lines. It is adjustable and easy to install.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 4010300EG
• Country of Origin: CHN

Technical Specifications

• Brand: Erico
• Manufacturer: ERICO
• MPN: 4010300EG
• Minimum Pipe Size: 3 Inch
• Maximum Pipe Size: 3 Inch
• Hanger Mounting Size: 1/2 Inch
• Height: 6-1/16 Inch
• Material: Steel
• Finish: Electrogalvanized
• Load Rating: 1130 Pound (Static)
• Applicable Standard: UL (Canada and US), FM, WW-H-171 Type 1, MSS-SP-58 Type 1
• Outer Diameter: 3.5 Inch
• Centerline Distance: 3-1/2 Inch
• Country Of Origin: CHN
• UPC: 78285634898
• Model: 401
• Adjustable Height: 1 INCH
• Standards: FM, UL, CUL, WW-H-171 TYPE 1, ANSI/MSS-SP-58 TYPE 1, ANSI/MSS-SP-69
