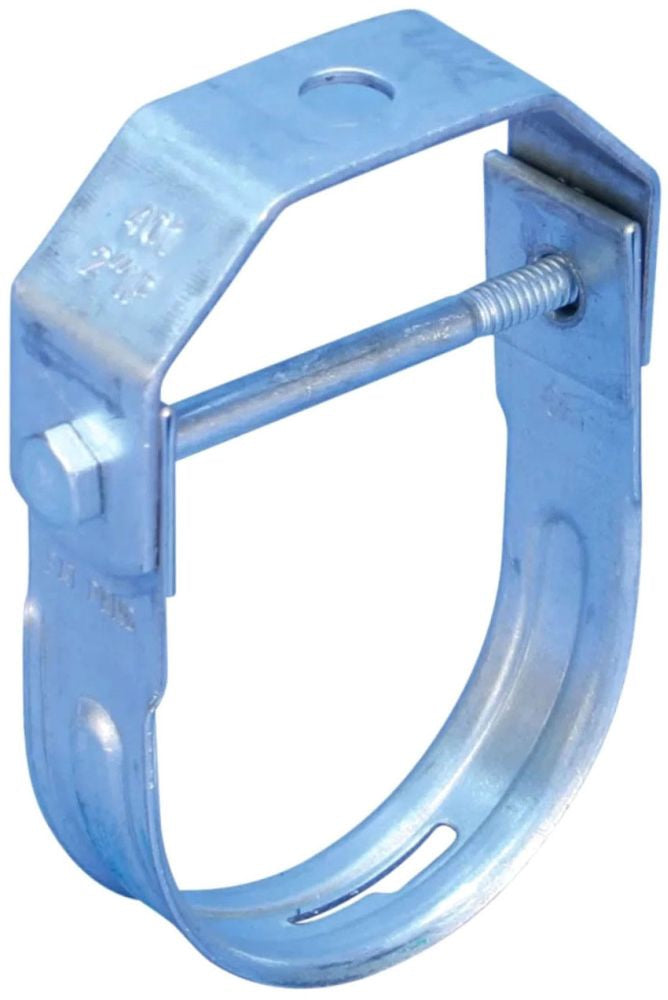

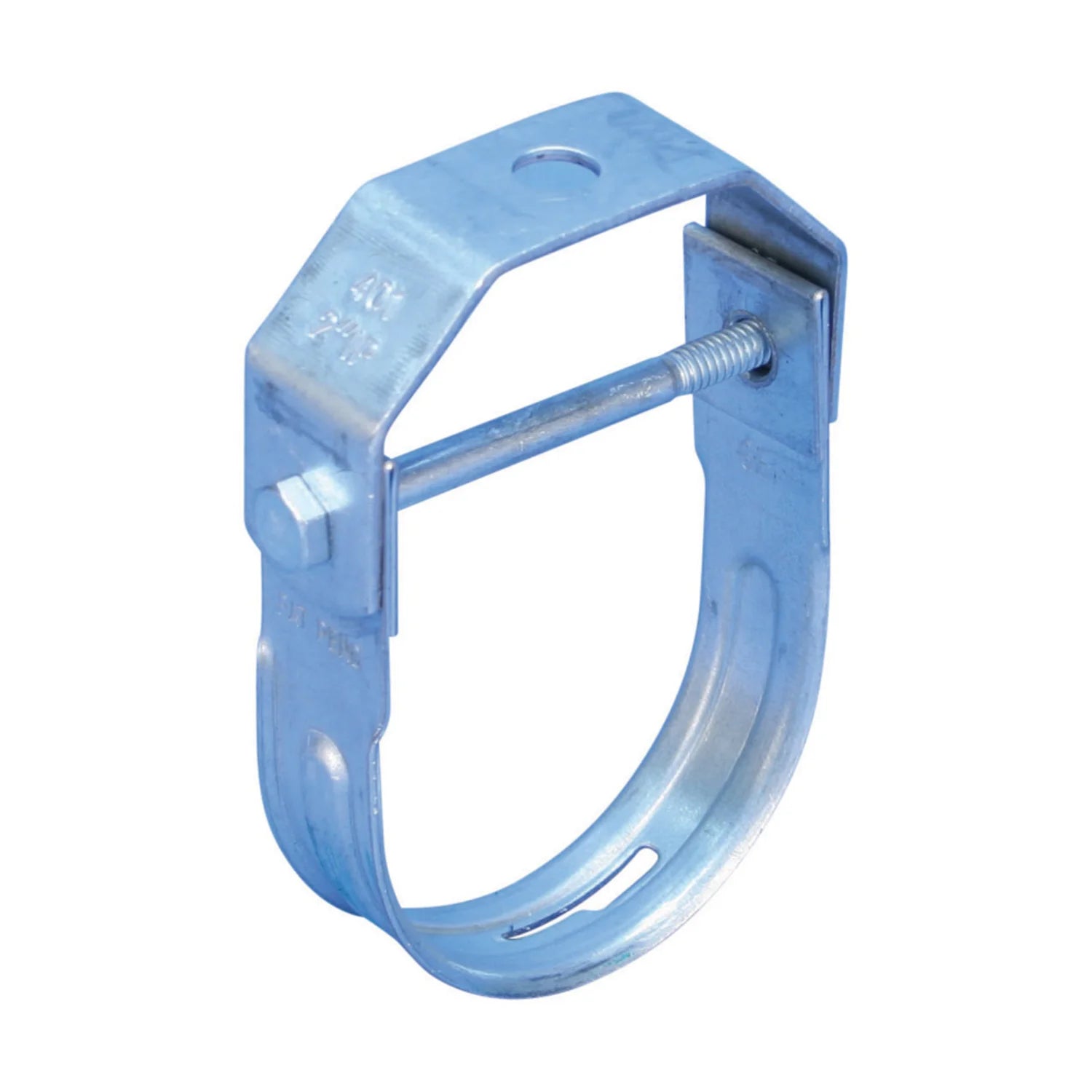

Erico 4010075EG Clevis Hanger 3/4 inches Pipe, 1.05 inches OD, 3/8 inches Rod

Product Description

The ERICO 4010075EG clevis hanger is designed for the suspension of stationary non-insulated pipe lines. It features flared edges to help prevent sharp surfaces from contacting the pipe. The clevis bottom pivots, allowing pipe to be fed from either direction. This steel hanger conforms with Federal Specification WW-H-171 (Type 1) and MSS SP-58 (Type 1).

• Recommended for the suspension of stationary non-insulated pipe lines
• Flared edges help prevent sharp surfaces from coming into contact with the pipe (1/2" to 2" pipe sizes)
• Clevis bottom pivots to allow pipe to be fed from either direction

Product Highlights

Adjustable clevis hanger made of steel with electrogalvanized and pre-galvanized finish. Conforms to industry standards.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 4010075EG
• Country of Origin: CHN

Technical Specifications

• Brand: Erico
• MPN: 4010075EG
• Minimum Pipe Size: 3/4 Inch
• Maximum Pipe Size: 3/4 Inch
• Height: 2-1/2 Inch
• Material: Steel
• Finish: Electrogalvanized;Pregalvanized
• Load Rating: 610 Pound
• Applicable Standard: Federal Specification WW-H-171, MSS SP-58, UL (Canada and US), FM
• Outer Diameter: 1.05 Inch
• Pipe Size: 3/4"
• Rod Size (RS): 3/8"
• Static Load (F): 600lbf
• Type: Adjustable Clevis
