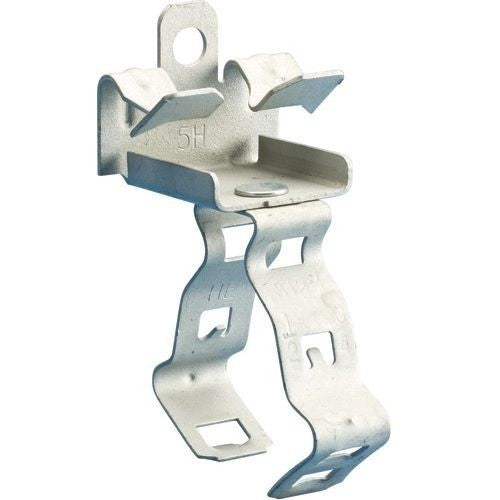

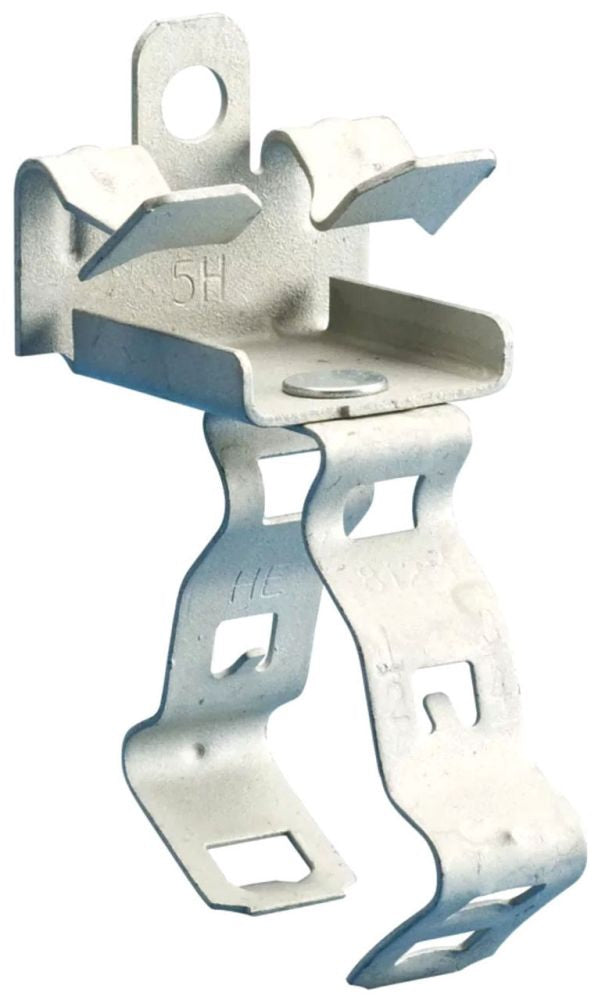

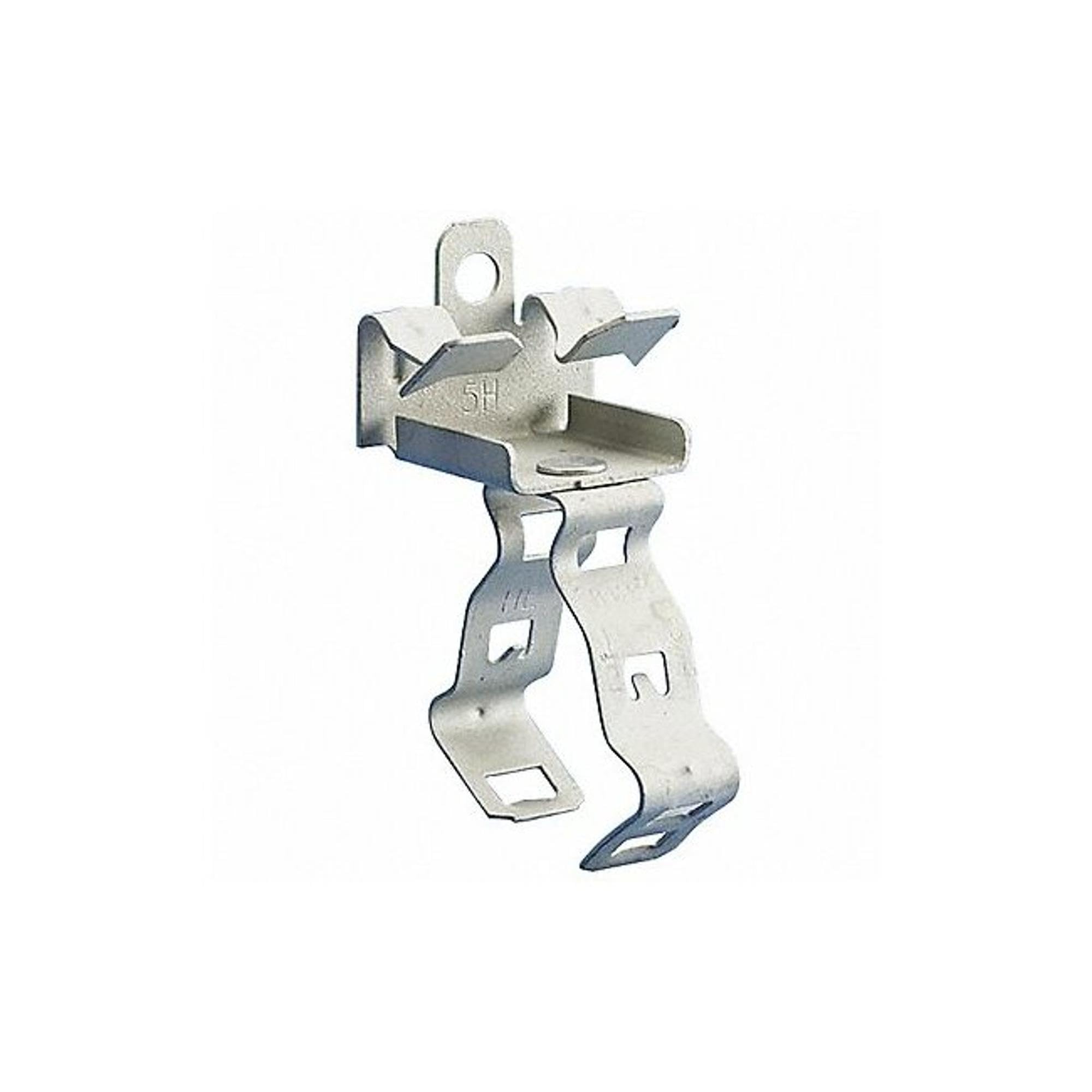

Erico 32M24 Conduit/Pipe to Flange Clip 2 Inch

Product Description

The ERICO 32M24 Conduit/Pipe to Flange Clip is designed to support conduit, pipe, or cable from beam flanges. This snap close clip pivots 360 degrees and installs with a hammer. It is made from CADDY Armour spring steel and supports 2 inch EMT or rigid conduit.

• Supports Conduit/Pipe or Cable from Beam Flanges
• Snap close clip pivots a full 360 degree
• Requires only a hammer to install

Product Highlights

The ERICO 32M24 clip provides a secure and versatile mounting solution for conduit and cable management.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 32M24
• Country of Origin: United States

Technical Specifications

• Beam/Flange Size: 1/8 to 1/4 Inch
• Conduit Size: 2 Inch
• Installation: Hammer-On
• Load Capacity: 75 lb
• Manufacturer Name: Erico
• Material: Steel
• Mounting: Bottom
• Type: Conduit Snap Close Clip, 360 Degree Pivot
• Flange Thickness: 1/8 in to 1/4 in
• Compatible Pipe Size: 2 in
• Finish: Caddy Armour
• Compatible Conduit Trade Size: 2 in
• Compatible Conduit Type: EMT
• Compatible Nominal Conduit/Pipe Size: 2 in
• Rotation: Rotates 360 Degrees
• Maximum Cable OD: 2.36 in
• Minimum Cable OD: 1.97 in
• For Use With: Cable, Conduit, Pipe
• Mounting Type: Hammer On, Snap Close
• Application: Datacom and Low Voltage
• Country of Origin: US
• Outside Diameter: 1.969 to 2.362 in
• Mfg Standards/Approvals: cULus Listed, RoHS Exempted
