Erico 3100050EG CAD 3100050EG 1/2 Mall Beam Clamp 1/2 Inch Rod 1-1/4 Inch Jaw Opening

Product Description

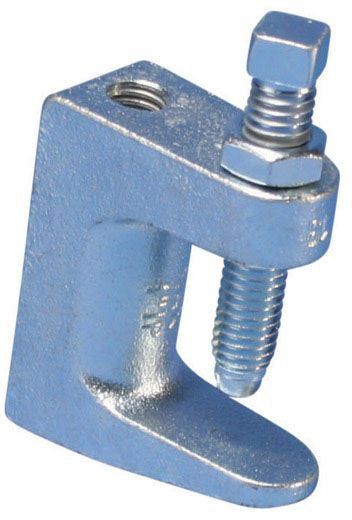

The Erico beam clamp, model 3100050EG, is designed for securing structural support with a maximum jaw capacity of one and one quarter inches. It is constructed from cast iron and features an electrogalvanized finish. The clamp is suitable for a variety of applications where a secure connection is required.

• Jaw depth of one inch
• Load capacity of nine hundred fifty pounds (static top) and seven hundred sixty pounds (static bottom)
• Includes square head screw for easy installation

Product Highlights

This universal beam clamp is designed to accommodate various structural sections such as C-purlins, angles, channels, and beams. The reversible design allows attachment on either the top or bottom flange, enhancing versatility in installation.

Product Information

Standard Information

• Manufacturer: Erico
• Country of Origin: China

Technical Specifications

• Bolt Size: 1/2 Inch
• Rod Size: 1/2 Inch
• Material: Cast Iron
• Torque Rating: 11 Foot-Pounds
• Approval: UL (Canada and US), FM
