ERICO 3100037PL Universal Beam Clamp Thick Flange 3/8 Rod

Product Description

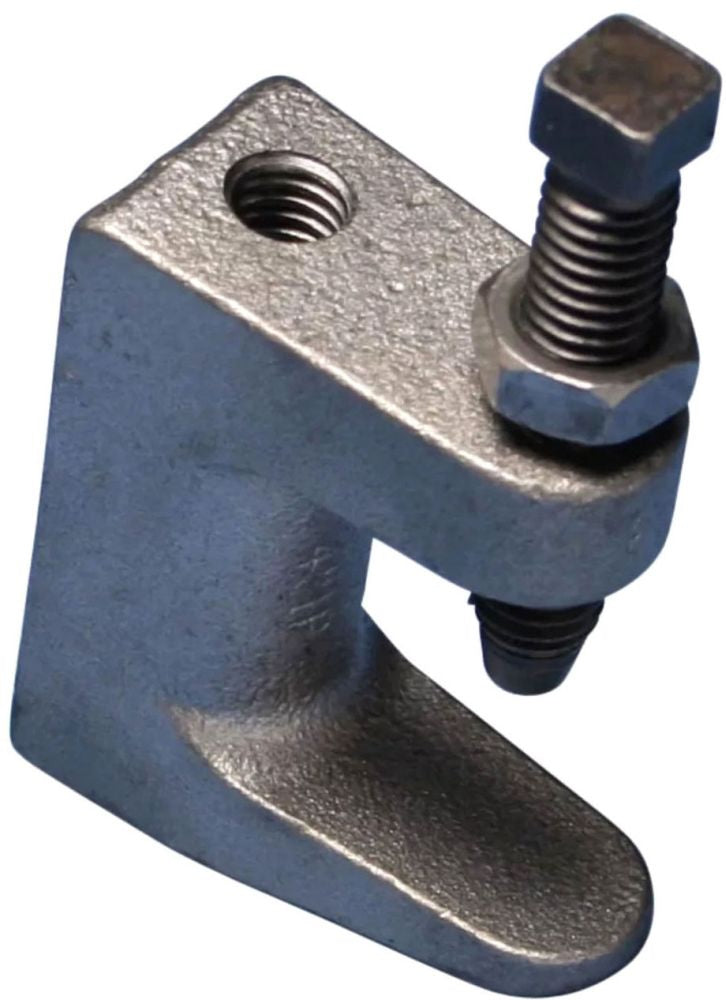

The ERICO 3100037PL is a universal beam clamp for thick beams. Made from steel, it has a plain finish. It fits a rod size of three-eighths inches and has a jaw depth of one inch. The clamp can hold a maximum load of 250 pounds to 500 pounds. It meets various standards, including ANSI/MSS-SP-58 Type 19/23 and UL (Canada and US).

• Maximum jaw capacity of one and one-fourth inches.
• Load capacity of 250 pounds or 500 pounds.
• Wide throat design for various applications.

Product Highlights

This clamp is ideal for securing rod supports and beams in HVAC systems and other applications.

Product Information

Standard Information

• Brand: ERICO
• MPN: 3100037PL

Technical Specifications

• Material: Cast Iron
• Maximum Jaw Capacity: 1-1/4 inches
• Torque Rating: 5 foot-pounds
• Flange Thickness: 1-1/4 inches Max
• Rod Size: 3/8 inches
• Static Load Capacity: 250 pounds, 500 pounds
• Standards Compliance: ANSI/MSS-SP-58 Type 19/23, WW-H-171 Type 23, UL, FM
