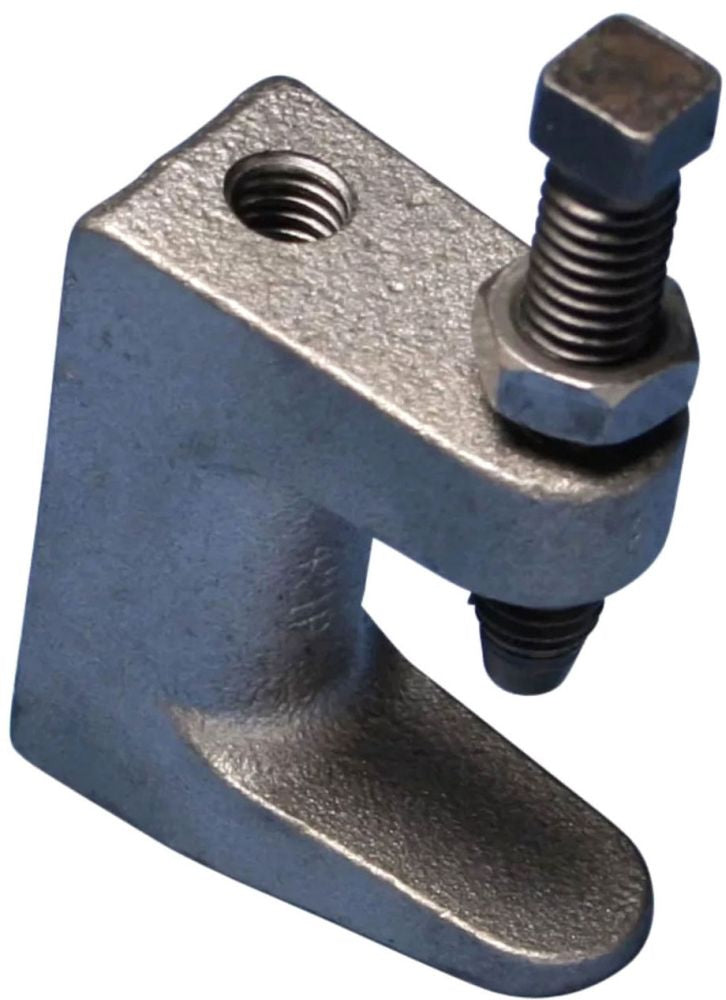

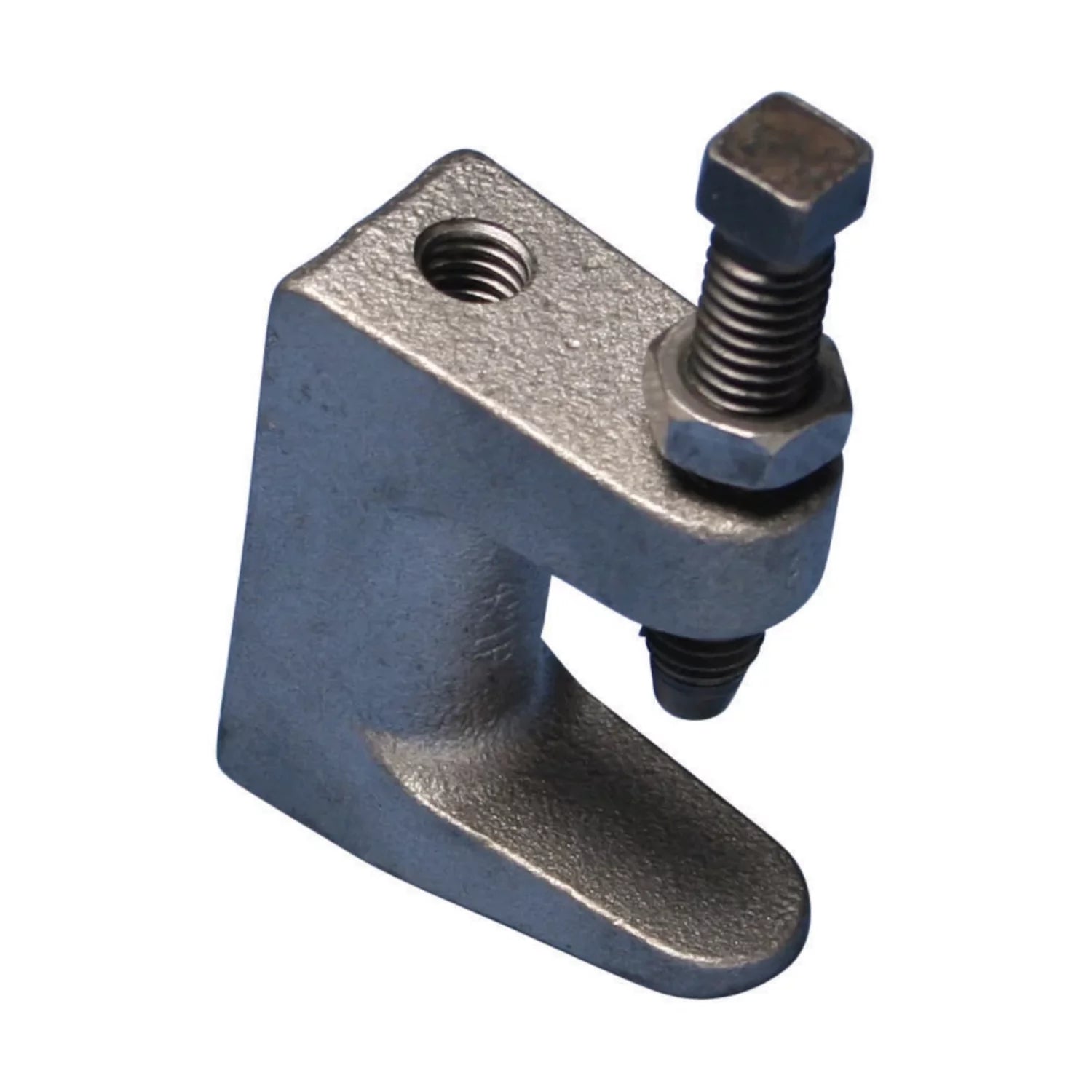

Erico 3100037PL Universal Beam Clamp Thick Flange 3/8 inches Rod

Product Description

The Erico 3100037PL is a universal beam clamp suitable for thick beams. This clamp meets the requirements of the Federal Specification WW-H-171 (Type 23) and Manufacturers Standardization Society (MSS) SP-58 (Type 19 and 23). It is ideal for various applications, including datacom, low voltage, electrical fixing, fire sprinkler systems, and HVAC installations.

• Universal design for thick beams
• Conforms to federal and industry standards
• Reversible clamp for wider flanges

Product Highlights

This clamp supports a rod size of three eighths of an inch and maximizes flange thickness of one and one fourth inches.

Product Information

Standard Information

• Material: Cast Iron
• Finish: Plain

Technical Specifications

• Rod Size: 3/8 inches
• Flange Thickness: 1 1/4 inches Max
• Torque: 5 ft·lbf
• Static Load 1: 500 pounds
• Static Load 2: 250 pounds
• UPC: 782856348979
• EAN: 0782856348979
• Applications: Datacom, electrical fixing, fire sprinkler, HVAC, plumbing, refrigeration, seismic bracing
