Erico 3050037S4 Stainless Steel Beam Clamp Top Mount 3/8 inches Rod 5/8 inches Max Flange

Product Description

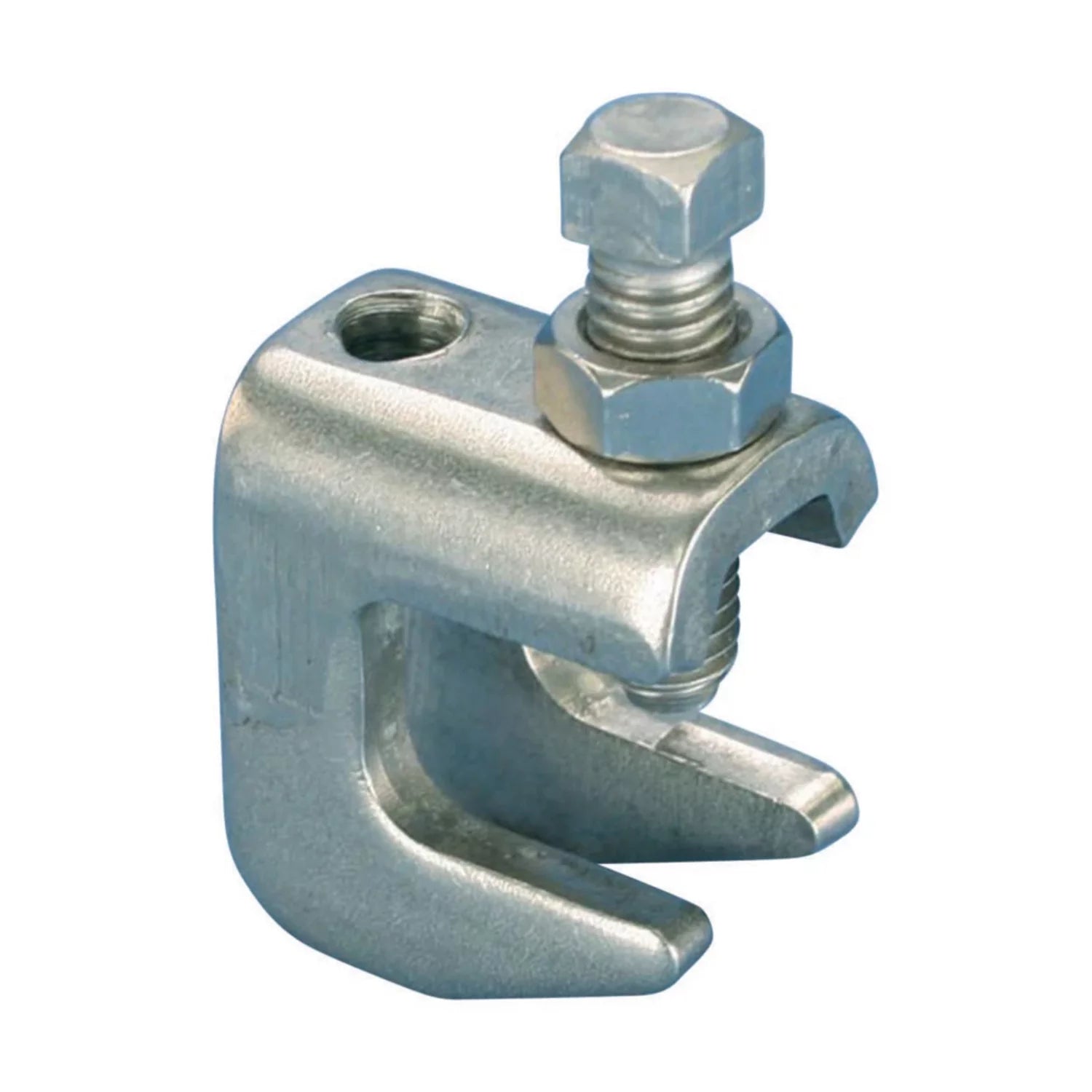

The Erico 3050037S4 is a stainless steel beam clamp made for securing to the top flange of metal beams, purlins, channels, or angle iron. This clamp meets specific federal and industry standards, ensuring durability and safety in structural applications.

• Pressed steel construction
• Designed for attachment to metal beams and similar structures
• Meets Federal Specification WW-H-171 and ANSI/MSS-SP-58 standards

Product Highlights

The Erico 3050037S4 is essential for contractors and builders needing reliable beam clamps for construction.

Product Information

Standard Information

• Material: Stainless Steel 304 (EN 1.4301)
• UPC: 782856596899

Technical Specifications

• Rod Size (RS): 3/8 inches
• Flange Thickness (FT): 5/8 inches Max
• A: 7/8 inches
• Screw Diameter (Sc): 3/8 inches
• Screw Length (L): 1 1/2 inches
• Torque (TQ): 5 ft·lbf
• Static Load (F): 500 pounds
• Standard Packaging Quantity: 100 units
