Erico 3000050EG CAD Universal Beam Clamp 1/2 Inch Rod 3/4 Inch Jaw Opening

Product Description

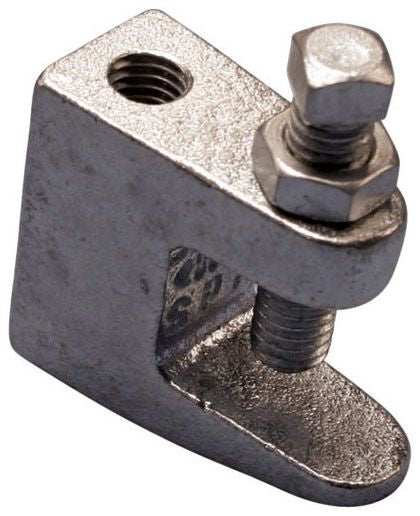

The Erico 3000050EG is a universal beam clamp designed for use in various applications. It features robust steel construction and an electro-galvanized finish for durability. This beam clamp is equipped with a jaw opening of three-quarters of an inch and is compatible with rods sized at one-half inch.

• Maximum load capacity of nine hundred fifty pounds (top) and seven hundred sixty pounds (bottom)
• Constructed from steel with an electro-galvanized finish for increased lifespan
• Reversible design allows attachment to top or bottom flange

Product Highlights

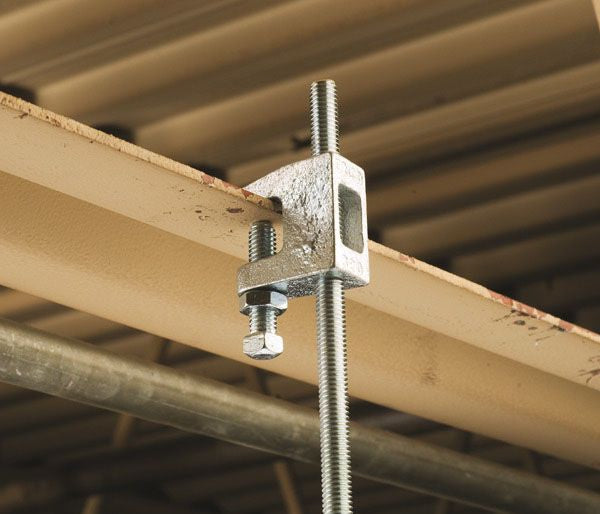

This beam clamp is suitable for fire sprinkler systems, HVAC, plumbing, and refrigeration installations. It is ANSI certified and meets various federal specifications.

Product Information

Standard Information

• Brand: Erico
• Manufacturer Part Number: 3000050EG

Technical Specifications

• Material: Steel
• Load Capacity: 950 lb Static Top, 760 lb Static Bottom
• Bolt Size: 7/16 Inch
• Jaw Depth: 1-1/8 Inch
• Flange Thickness: 13/16 Inch
• Torque Rating: 8 Foot-Pound
• Applicable Standards: cULus certified, FM approved, ANSI/MSS-SP-58
• Country of Origin: China
