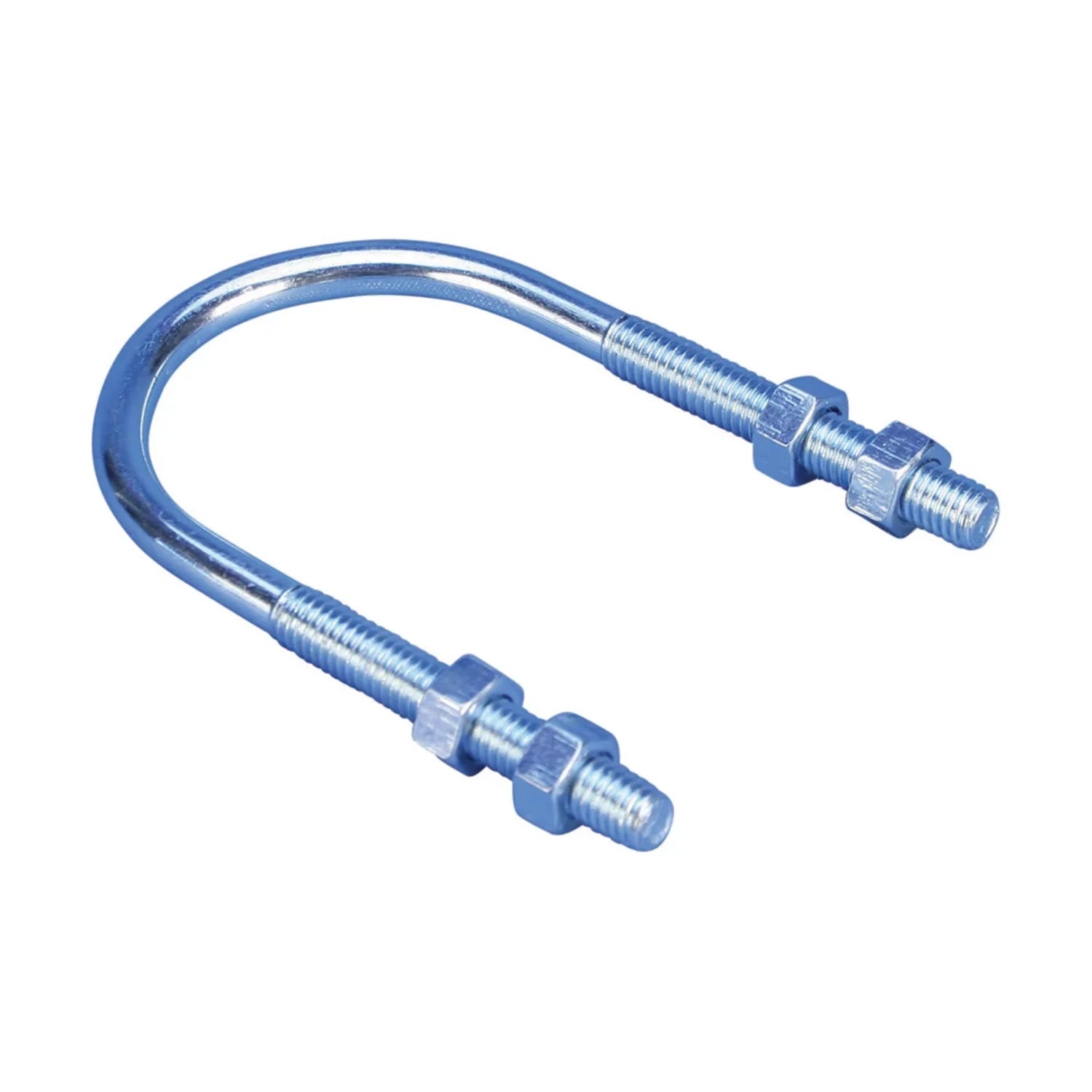

Erico 150M0250EG Standard U-Bolt Steel 2 1/2 inches Pipe 1/2 inches Rod

Product Description

The Erico 150M0250EG standard U-Bolt is constructed from steel and is intended for pipe support in various piping applications. It follows Federal Specification WW-H-171 (Type 24) and ANSI/MSS-SP-58 standards. The U-Bolt includes four nuts, with two already attached to each end.

• Pipe support for general piping applications
• Includes four nuts (two pre-installed)
• Meets federal and ANSI standards for reliable performance

Product Highlights

Product Information

Standard Information

• Brand: Erico
• MPN: 150M0250EG

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Pipe Size: 2 1/2 inches
• Outer Diameter (OD): 73 mm
• Rod Size (RS): 1/2 inches
• Screw Length (L): 76.2 mm
• A: 146.1 mm
• B: 85.7 mm
