Erico 150M0200EG Standard U-Bolt 2 inches Pipe 2.375 inches OD 3/8 inches Rod

Product Description

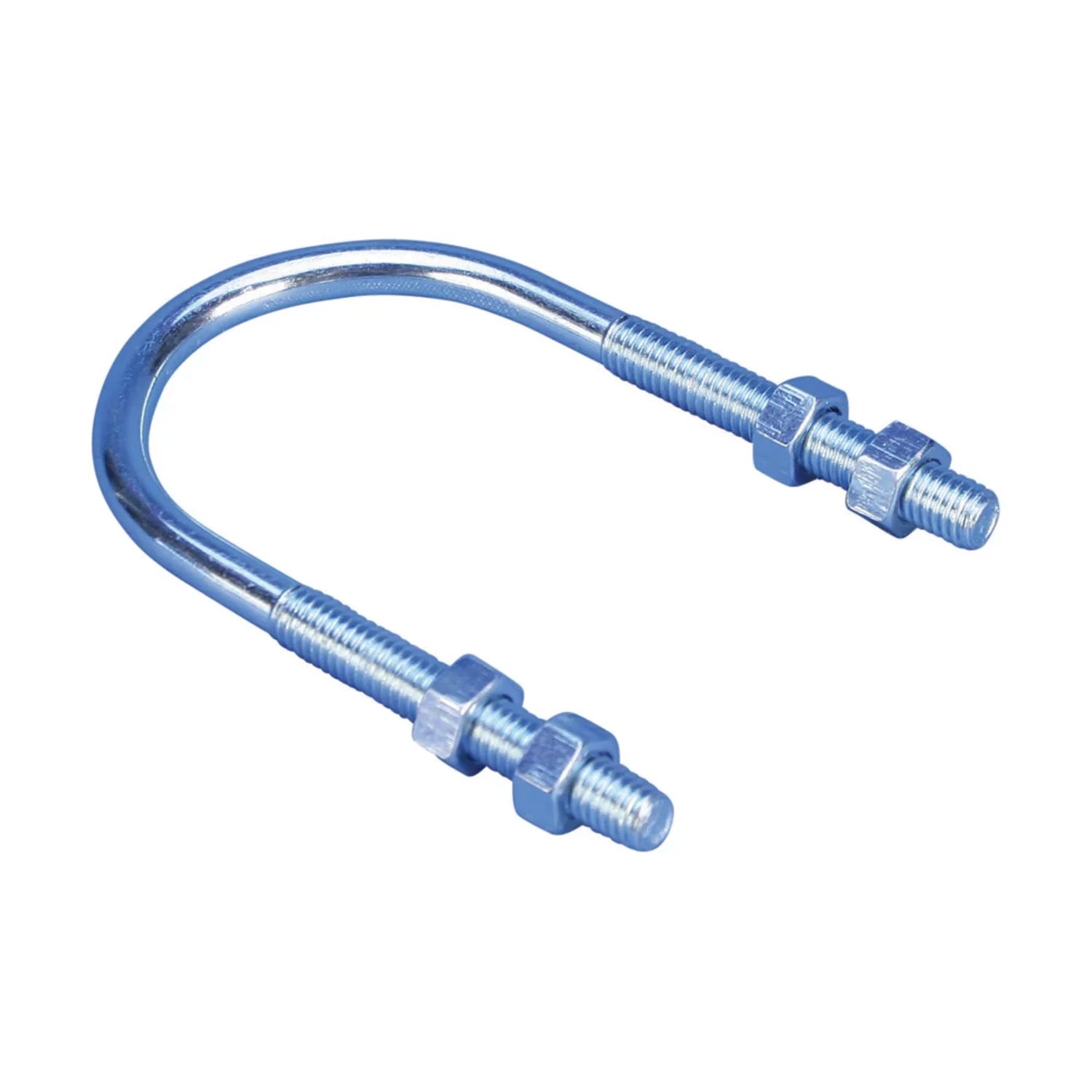

The ERICO 150M0200EG standard U-Bolt is suitable for general piping needs. It is made from steel with an electrogalvanized finish. This U-bolt supports a two inch pipe with a two point three seven five inch outer diameter and includes a three eighths inch rod. The product is supplied with four nuts, two of which are pre-installed on each end.

• Pipe support for general piping applications
• Includes four nuts (two installed on each end)
• Meets Federal Specification WW-H-171 (Type 24) and ANSI/MSS-SP-58 standards

Product Highlights

This U-bolt is designed to provide reliable support for piping and is ideal for various industrial and construction applications.

Product Information

Standard Information

• Material: Steel
• Finish: Electrogalvanized

Technical Specifications

• Pipe Size: 2 inches
• Outer Diameter (OD): 2.375 inches
• Rod Size (RS): 0.375 inches
• Screw Length (L): 2.5 inches
• A: 4.8125 inches
• B: 2.75 inches
• Static Load (F): 1090 lb
• UPC: 782856601616
