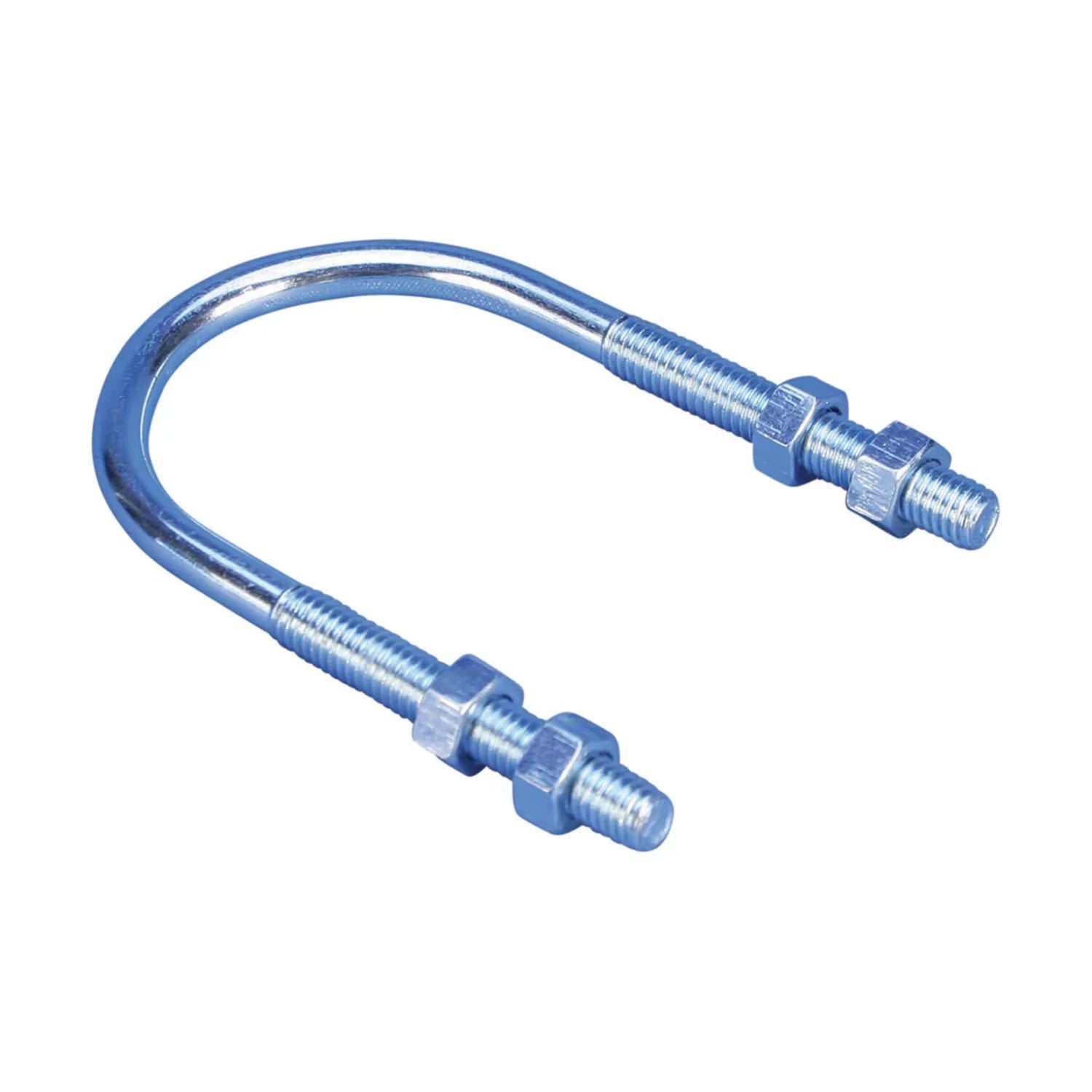

ERICO 150M0150EG Standard U-Bolt Steel 1 1/2 Inches Pipe 1.9 Inches OD 3/8 Inches Rod

Product Description

The ERICO 150M0150EG standard U-bolt is a durable steel fastening solution designed for piping applications. It supports a pipe with a size of 1 1/2 inches and an outer diameter of 1.9 inches. The U-bolt features an electrogalvanized finish for added durability and corrosion resistance.

• Supports 1 1/2 inches pipe with a 1.9 inches outer diameter.
• Includes 4 nuts, with 2 installed on each end.
• Complies with Federal Specification WW-H-171 (Type 24) and ANSI/MSS-SP-58 (Type 24).

Product Highlights

This U-bolt is ideal for securing pipes in various setups, ensuring reliability in plumbing and construction tasks.

Product Information

Standard Information

• Brand: ERICO
• MPN: 150M0150EG

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Pipe Size: 1 1/2 inches
• Outer Diameter (OD): 1.9 inches
• Rod Size (RS): 3/8 inches
• Screw Length (L): 2.5 inches
• Static Load (F): 1090 lb
• Catalog Number: 150M0150EG
