Erico 1010300CP B-LINE B3170CT3R12 3CT ADJ. RING HANGER 1/2ROD CONN.

Product Description

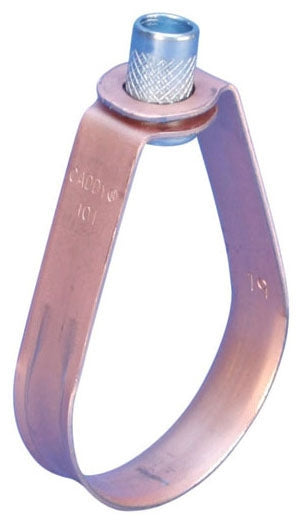

The Erico 1010300CP is a pipe hanger designed for the suspension of stationary non-insulated copper tube lines. This unit is suitable for pipes with a minimum and maximum size of three inches. It features a hanger mounting size of half an inch and is constructed from durable steel with a copper electroplated finish.

• Load rating of two hundred fifty pounds (static)
• Outer diameter of three and one-eighth inches
• Centerline distance of two and a half inches

Product Highlights

This product meets the standards of WW-H-171 Type 10 and MSS-SP-58 Type 10, making it compliant with industry requirements.

Product Information

Standard Information

• Brand: Erico
• UPC: 78285636081

Technical Specifications

• Type: Loop
• Finish: Copper Electroplated
• Height: Five and eleven-sixteenths inches
• Material: Steel
• Load Rating: Two hundred fifty pounds (Static)
• Maximum Pipe Size: Three inches
• Minimum Pipe Size: Three inches
• Hanger Mounting Size: Half an inch
