ERICO 1010050CP 1/2 Swivel Loop Hanger

Product Description

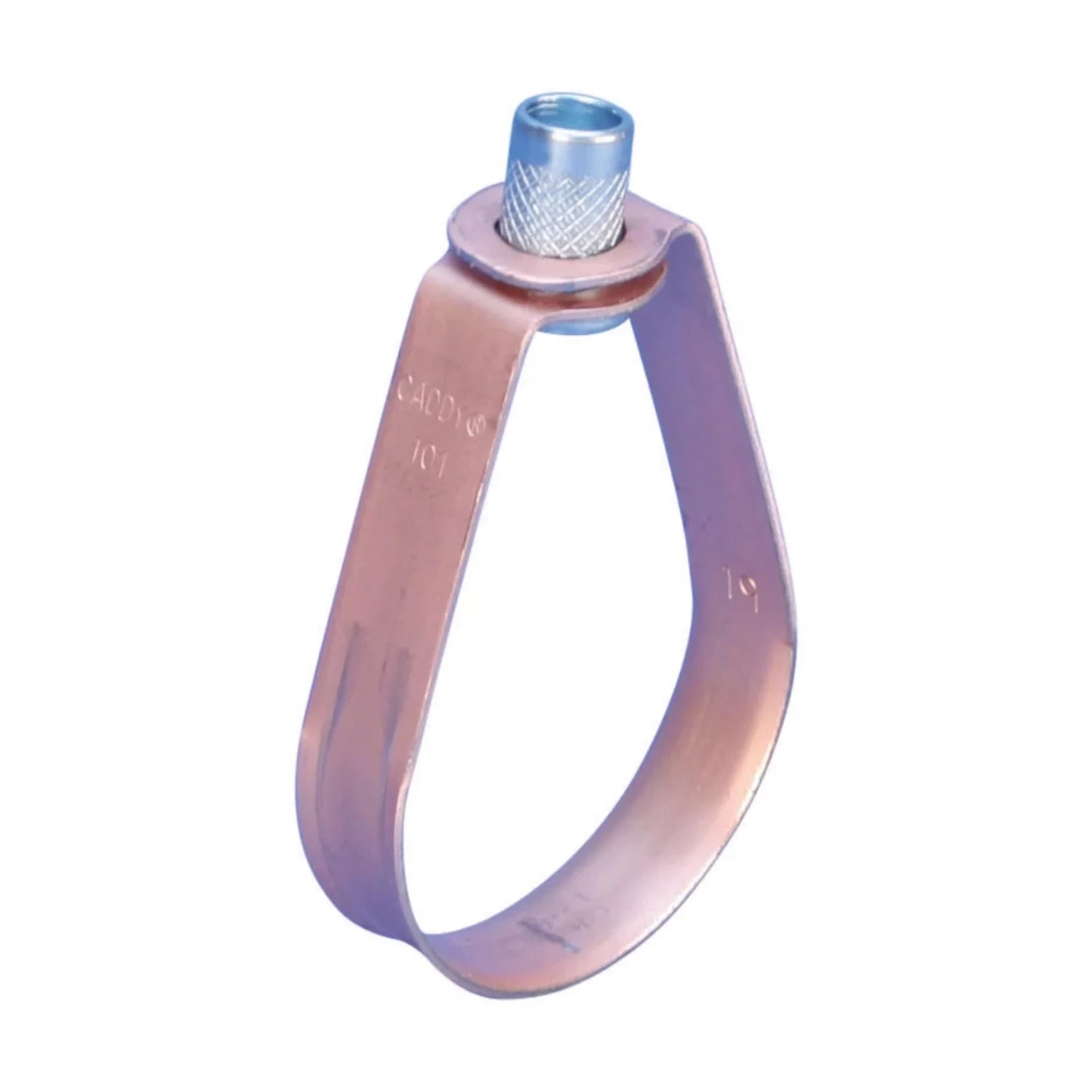

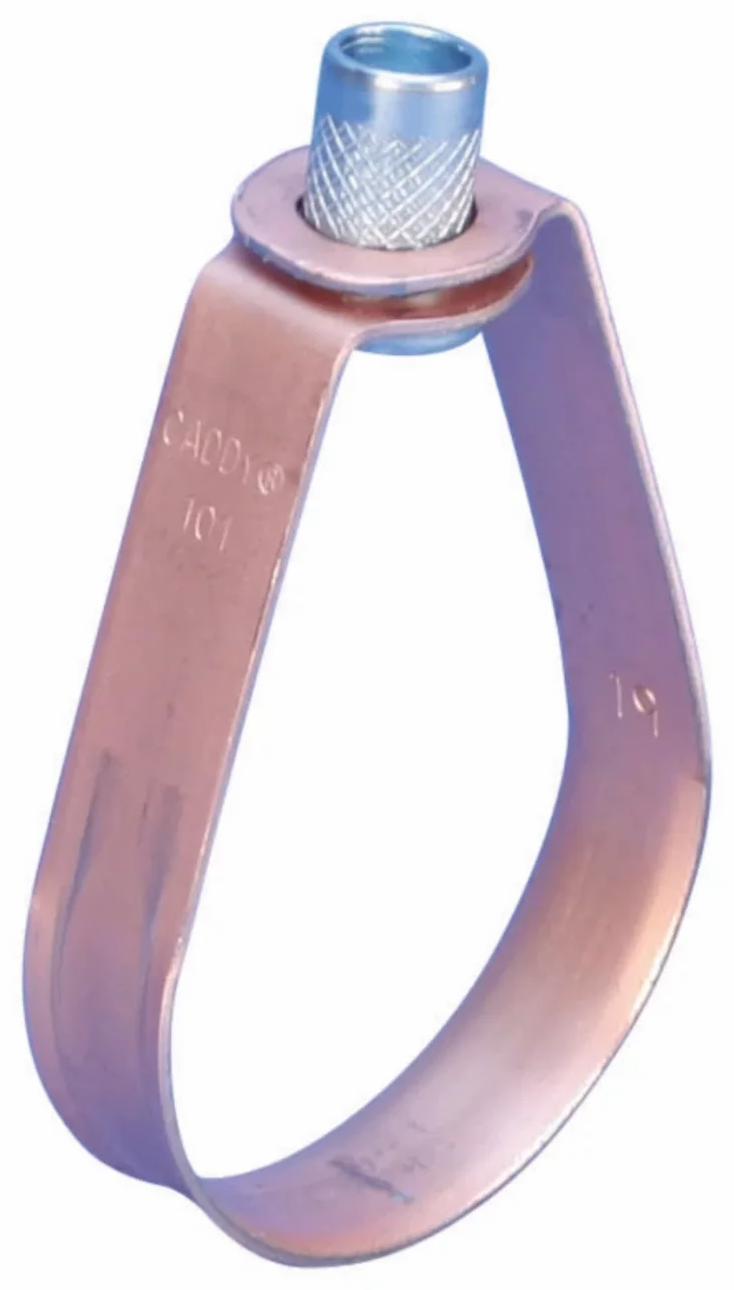

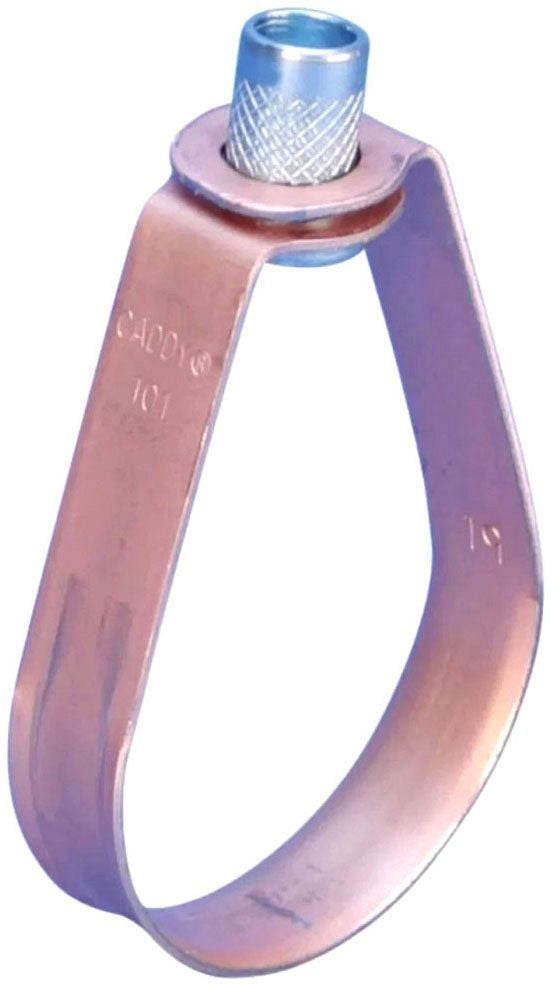

The ERICO 1010050CP is a loop-type hanger made for supporting stationary, non-insulated copper tube lines. It is built from steel and features a copper electroplated finish for durability. This hanger has a pipe size of one half inches and an outer diameter of five eighths inches. It includes a mounting rod size of three eighths inches and meets Federal Specification WW-H-171 Type 10 and MSS SP-58 Type 10 standards.

• Designed for stationary non-insulated copper tube line suspension.
• Steel construction with copper electroplated finish.
• Meets WW-H-171 Type 10 and MSS-SP-58 Type 10 standards.

Product Highlights

This hanger is ideal for plumbing and HVAC applications where reliable support is needed for copper piping systems.

Product Information

Standard Information

• UPC: 782856360742
• GTIN: 0782856360742

Technical Specifications

• Material: Steel
• Finish: Copper Electroplated
• Pipe Size: 1/2 inch
• Outer Diameter (OD): 5/8 inch
• Rod Size (RS): 3/8 inch
• Height: 3 3/16 inches
• Static Load (F): 180 lbf
• Applicable Standard: WW-H-171 Type 10, MSS-SP-58 Type 10
• Hanger Mounting Size: 3/8 inch
• Load Rating: 180 pounds (Static)
• Maximum Pipe Size: 1/2 inch
• Minimum Pipe Size: 1/2 inch
• Type: Loop
