Yellow Jacket 19660 BCB-60 Heavy Duty Hose 60 inches Replacement MPN

Product Description

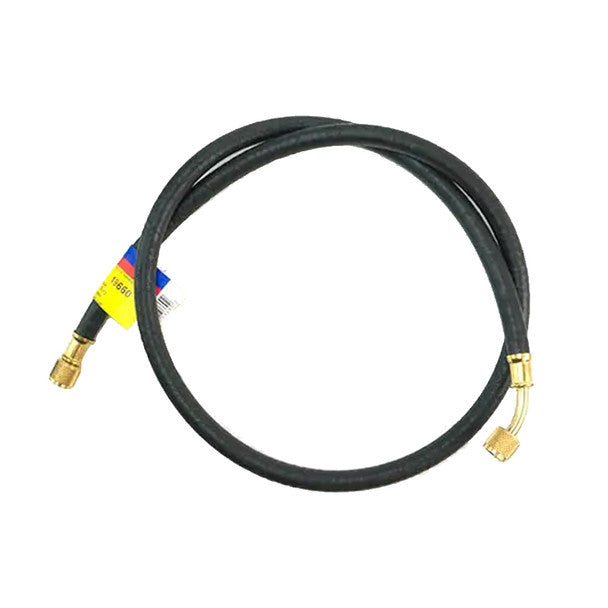

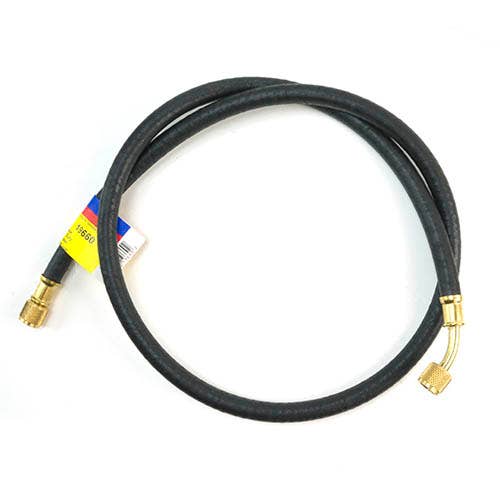

The YELLOW JACKET 19660 BCB-60 heavy duty hose is designed for charging and vacuum applications. Featuring a 3/8 inch inside diameter and a 60 inch overall length, this hose is equipped with 3/8 inch straight flared x 3/8 inch 45 degree flare end connections. It is rated for a pressure of 600 PSI and a burst pressure of 3000 PSI.

• 3/8 inch inside diameter for faster vacuum pulls
• 60 inch overall length
• Heavy duty construction for increased service life

Product Highlights

This heavy-duty charging/vacuum hose is ideal for HVAC/R applications, offering efficient and reliable performance with its robust design and optimized diameter.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 19660
• Country of Origin: USA

Technical Specifications

• Brand Name: Yellow Jacket
• Burst Pressure Rating: 3000 PSI
• Catalog Number: 19660
• Description: Charging/Vacuum Hose; Inside Diameter 3/8 Inch; Minimum Bend Radius 8 Inch; Overall Length 60 Inch; End Connection 3/8 Inch Straight Flared x 3/8 Inch 45 Degree Flare; Pressure Rating 600 PSI; Burst Pressure Rating 3000 PSI; Temperature Rating -22 to 176 Deg F; Color Black; Type Heavy Duty, Straight
• End Connection: 3/8 Inch Straight Flared x 3/8 Inch 45 Degree Flare
• Inside Diameter: 3/8 Inch
• Manufacturer Name: Yellow Jacket
• Manufacturer Part Number: 19660
• Minimum Bend Radius: 8 Inch
• Overall Length: 60 Inch
• Pressure Rating: 600 PSI
• Temperature Rating: -22 to 176 Deg F
• Operating temperature: -22 to 176°F (-30 to 80°C)
• Minimum burst pressure: 3000 psi (207 bar)
• Maximum working pressure: 600 psi (41 bar)
• Fitting Size: 3/8"
• Hose Length: 60"
• Hose End: Straight x 45 Degree Angle
• Product Type: Hose
• Application: Charging/Vacuum
• Hose End Angle: 45
• Bending Radius - Minimum: 8 in
• Manifold Connection Size: 3/8 in
• Line Connection Size: 3/8 in
• Maximum Operating Pressure: 600 psi
• Operating Temperature - Minimum: -20 °F
• Maximum Operating Temperature: 180 °F
• Number of Hoses: 1
• For Refrigerant Group: CFC; HCFC; HFC
