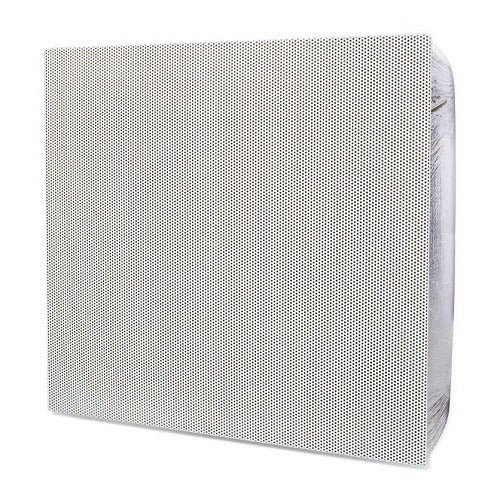

Episode ECS-200-70V-2X2-TR 70V 2x2 Tile Speaker

Product Description

The EPISODE ECS-200-70V-2X2-TR is a 70-volt in-ceiling tile speaker designed for distributed audio installations in commercial and light commercial environments. Built to fit a standard 2x2 ceiling tile grid, this speaker integrates into drop-ceiling systems without requiring a separate enclosure or significant structural modification. The 70-volt architecture makes it suitable for multi-zone, high-impedance distribution systems where multiple speakers are wired in series along a single amplifier output. Installation is typically performed by low-voltage audio-visual technicians or licensed electrical contractors familiar with 70V distributed audio systems.

The ECS-200-70V-2X2-TR is suited for commercial spaces such as offices, retail environments, restaurants, and hospitality venues where background music or paging coverage is required across large areas. Its 2x2 tile form factor allows it to replace a standard ceiling tile directly, maintaining a clean, professional ceiling appearance. This model is sold individually as a single unit.

Key Features

• 70-volt distributed audio architecture supports long wire runs and multi-speaker series wiring
• 2x2 tile form factor fits standard drop-ceiling grid systems without a separate back can
• In-ceiling mounting design maintains clean ceiling aesthetics in commercial spaces
• Intended for background music, paging, and zoned audio applications

Compatibility

Designed as an OEM-style fit for standard 2x2 drop-ceiling grid systems used in commercial distributed 70-volt audio installations.

Installation Notes

Installation should be performed by a qualified low-voltage technician or licensed AV integrator familiar with 70-volt distributed audio wiring practices. Disconnect and power down the amplifier before wiring the speaker tap connections. Verify the tap wattage setting matches the amplifier load calculations for the zone. Local building codes and NEC low-voltage wiring requirements should be followed throughout the installation.
