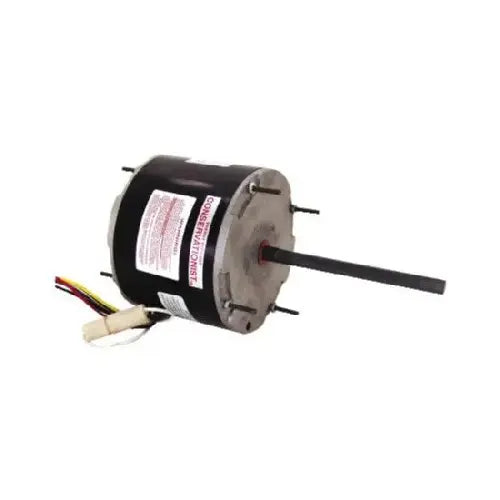

Epc FE6004F Permanent Split Capacitor Blower Motor 3/4 hp 5-5/8 in.

Product Description

The EPC FE6004F Permanent Split Capacitor (PSC) Blower Motor is engineered for both residential and commercial condenser fan applications. This single-phase motor features a totally enclosed enclosure, ensuring durability in various environments. It operates on 208-230V and offers multiple horsepower options, including 3/4, 1/2, 1/3, and 1/4 hp, with an RPM range of 901 to 1200. Its reversible rotation capability enhances versatility for HVAC systems.

• Permanent Split Capacitor (PSC) motor type for efficient operation.
• Suitable for residential and commercial condenser fan applications.
• Totally enclosed enclosure provides enhanced durability.

Product Highlights

This EPC FE6004F PSC blower motor offers multi-horsepower options and reversible rotation for versatile condenser fan use.

Product Information

Standard Information

• Brand: EPC
• Manufacturer Part Number: FE6004F

Technical Specifications

• Model Number: FE6004F
• Motor Type: Permanent Split Capacitor (PSC)
• Application: Condenser Fan (Residential, Commercial)
• Enclosure Type: Totally Enclosed
• Diameter: 5-5/8 in.
• Horsepower: 3/4, 1/2, 1/3, 1/4 hp
• Voltage: 208-230V AC
• Phase: Single
• Frequency: 60Hz
• Current: 5.8A (3/4 hp), 3.9A (1/2 hp), 2.5A (1/3 hp), 1.8A (1/4 hp)
• RPM Range: 901 to 1200
• Rotation: Reversible
