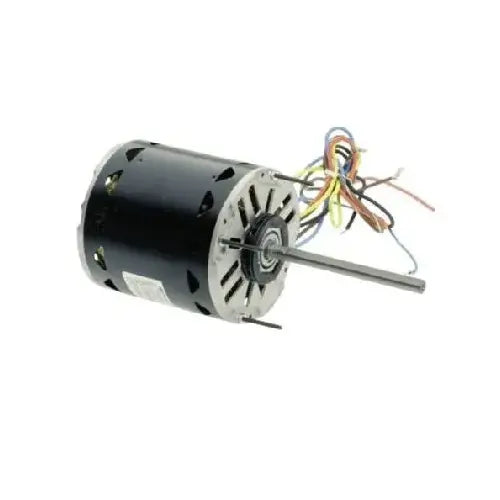

Epc bdl1106 direct drive fan and blower motor 1 hp 5-5/8 in. diameter

Product Description

The EPC BDL1106 is a direct drive fan and blower motor designed for various HVAC applications. This 1 HP motor operates at 1075 RPM across 3 speeds, providing efficient air movement. Featuring a 5-5/8 inch diameter and a reversible rotation, it is suitable for a range of fan and blower systems requiring reliable performance. Its ball bearing type ensures smooth operation and durability.

• 1 HP motor with 1075 RPM and 3 selectable speeds for versatile air handling.
• Features a 5-5/8 inch diameter and reversible rotation for flexible installation.
• Equipped with durable ball bearings for extended operational life.

Product Highlights

High-performance direct drive motor for fan and blower applications.

Product Information

Standard Information

• Brand: EPC
• Manufacturer Part Number: BDL1106

Technical Specifications

• Horsepower: 1 HP
• Input Voltage: 115V AC, Single Phase, 60Hz
• Model Number: BDL1106
• Motor Diameter: 5-5/8 inches
• RPM: 1075
• Number of Speeds: 3
• Full Load Amperage: 12.30 A
• Shaft Diameter: 1/2 inch
• Shaft Length: 6-3/8 inches
• Rotation: Reversible
• Bearing Type: Ball
• NEMA Frame: 48
