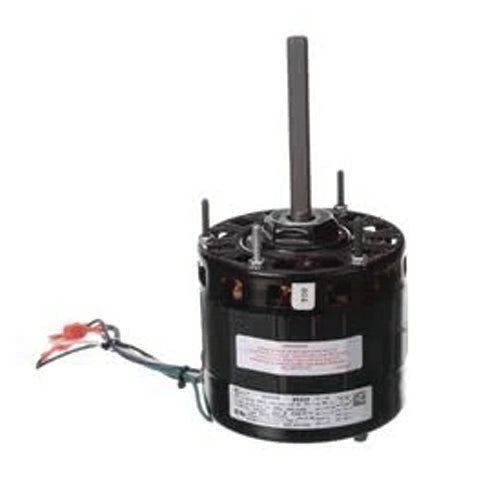

Epc B6520A Condenser Fan Motor 1/4 Hp 208-230V 1075 Rpm

Product Description

The EPC B6520A is a reversible condenser fan motor rated at 1/4 horsepower, designed for use in residential and light commercial HVAC systems. Operating on 208-230 volts at 1075 RPM, this motor delivers reliable airflow across condenser coils to support proper heat rejection. Reversible rotation allows the technician to set shaft direction to match the application without sourcing a separate CW or CCW unit. Licensed HVAC technicians typically handle installation and replacement of this component as part of condenser fan assembly service.

This motor is suited for condenser fan applications in split-system air conditioners and heat pumps. It is commonly installed in outdoor condensing units where the existing motor has failed due to worn bearings, burned windings, or capacitor-related damage. The 1075 RPM speed is a standard condenser fan operating speed, making this a common replacement in both residential service calls and light commercial HVAC maintenance work.

Key Features

• Reversible rotation allows field selection of shaft direction to match existing fan assembly
• 1/4 HP output rated for standard condenser fan load requirements
• 208-230 volt operation compatible with single-phase residential and light commercial supply voltages
• 1075 RPM matches the most common condenser fan speed specification
• Manufactured in Mexico to Century motor specifications

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioners and heat pumps requiring a 1/4 HP, 208-230 volt, 1075 RPM reversible motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the fan assembly or motor leads. Confirm run capacitor rating matches motor specifications before energizing, as an incorrect capacitor will cause premature motor failure. Follow NEC requirements for disconnect placement and wire gauge when servicing the outdoor unit.

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• Rotation: Reversible
• Country of Origin: Mexico

Standard Information

• Brand: EPC
• Manufacturer Part Number: B6520A
