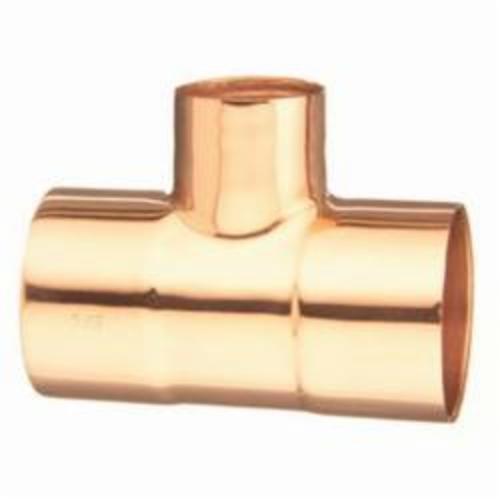

EPC 9104900 111-R Solder Reducing Tee, 2-1/2 x 2-1/2 x 1/2 in, Copper

Product Description

The EPC Reducing Tee MPN 9104900 is designed for use in plumbing applications. This fitting is part of the 111R Series and made from copper. It features a solder connection type with a nominal size of two and a half inches by two and a half inches by half an inch. The pressure rating is 335 psi, and it can operate within a temperature range of negative twenty to one hundred degrees Fahrenheit.

• Wrot copper construction
• Suitable for industrial and residential use
• Three connections: C x C x C

Product Highlights

This product is ideal for both industrial and residential applications, ensuring robust performance.

Product Information

Standard Information

• Manufacturer: EPC
• Part Number: 3038748

Technical Specifications

• Material: Copper
• Nominal Size: 2-1/2 x 2-1/2 x 1/2 in
• Pressure Rating: 335 psi
• Series: 111R Series
• Temperature Rating: -20 to 100 deg F
• Application: Industrial and Residential
• End Style: C x C x C
• Fitting Type: Tee
• Dimensions: 2-5/8 x 2-5/8 x 5/8 in OD
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
