Epc 771 Model 771 NEMA Motor Mount Accu-Coder

Product Description

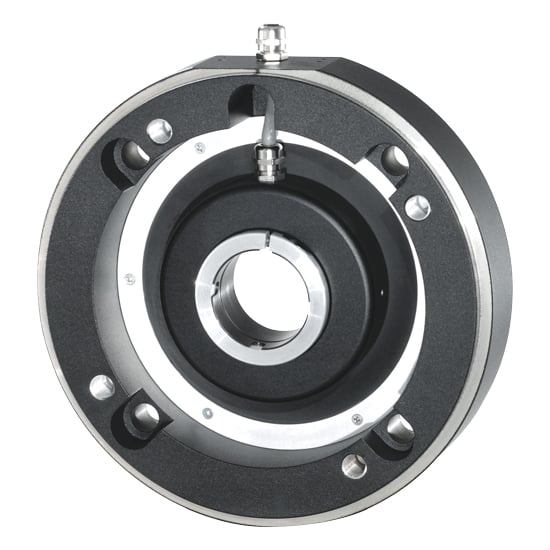

The EPC 771 C-Face encoder is a rugged, high-resolution device designed for direct mounting on NEMA C-Face motors, compatible with NEMA Size 182TC to 256TC. Featuring precision bearings and an internal flex mount, it minimizes inaccuracies from motor shaft runout. Its Opto-ASIC design ensures superior noise immunity, making it suitable for industrial applications, including induction motors and flux vector control. The thru-bore design allows simple mounting, and the all-metal housing resists vibration.

• Precision bearings and internal flex mount minimize encoder failures and inaccuracies.
• Designed for direct mounting on NEMA C-Face motors, compatible with NEMA Size 182TC thru 256TC.
• Advanced Opto-ASIC technology provides superior noise immunity for industrial applications.

Product Highlights

Rugged, high-resolution C-Face encoder with thru-bore design for NEMA motors, featuring Opto-ASIC technology and an all-metal housing.

Product Information

Standard Information

• Brand: EPC
• Manufacturer Part Number: 771

Technical Specifications

• Bore Size: to 1.875" (43 mm)
• Motor Face Compatibility: NEMA Size 182TC thru 256TC (8.5" AK)
• Technology: Opto-ASIC
• Resolutions: to 4096 CPR
• Input Voltage: 4.75 | 28 DC to 70° C | 24 DC to 100° C
• Input Current: 100 mA max with no output load
• Output Format: Incremental
• Output Types: Open Collector | Push-Pull | Pull Up | Line Driver
• Index: 1 per rev.
• Frequency: 200 kHz
• Radial: 0.005"
• Axial: ±0.1"
• Max Speed: 3500 RPM
• Enclosure Rating: IP65 Opt A housing w/ gasket kit | IP50 Opt B housing
• Moment of Inertia: 3.3 x 10⁻³ oz-in-sec² Typical
• Vibration: 10 g @ 58 to 500 Hz
• Shock: 50 g @ 11 ms duration
