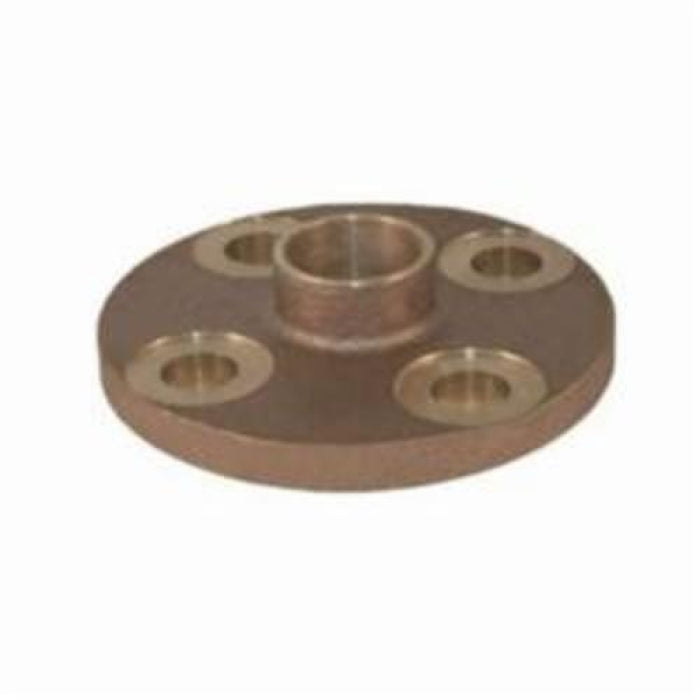

EPC 10056654 Companion Flange 4 in

Product Description

The EPC Companion Flange, model 10056654, is a reliable component designed for connecting pipes. It features a nominal size of four inches and is constructed from cast brass. The flange includes a connection type of C x C and is compliant with the 150 lb pressure class. This domestic product is suited for applications requiring solder connections.

• Nominal size: four inches
• Material: Cast brass
• Pressure class: 150 lb

Product Highlights

The EPC Companion Flange supports efficient pipe connections while maintaining durability. Ideal for plumbing and HVAC applications, it ensures a secure and leak-proof joint.

Product Information

Standard Information

• Brand: EPC
• MPN: 10056654

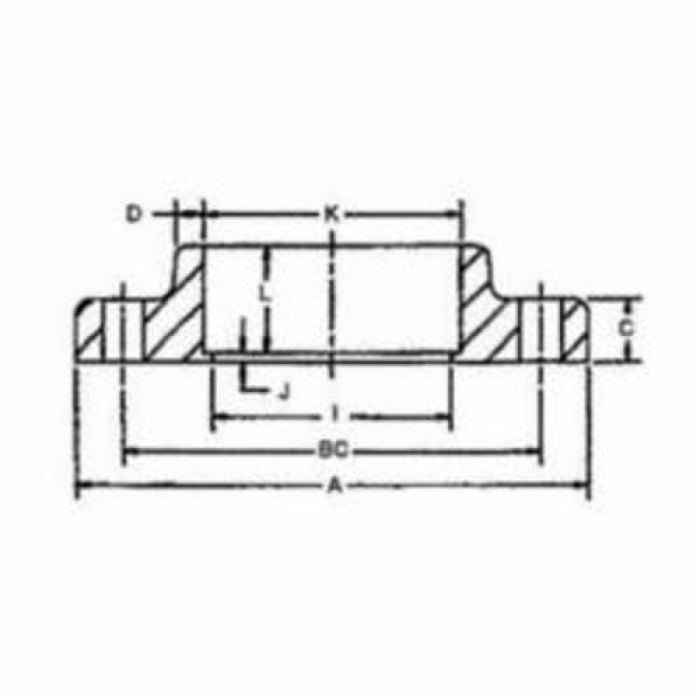

Technical Specifications

• Nominal Size: 4 in
• Inside Diameter: 4.128 to 4.133 in
• Outside Diameter: 9 in
• Thickness: 0.69 in
• Bolt Circle Diameter: 7-1/2 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 8
• Pressure Class: 150 lb
• Connection Type: C x C
• Domestic/Import: Domestic
• Material: Cast Brass
• Series: 4741
