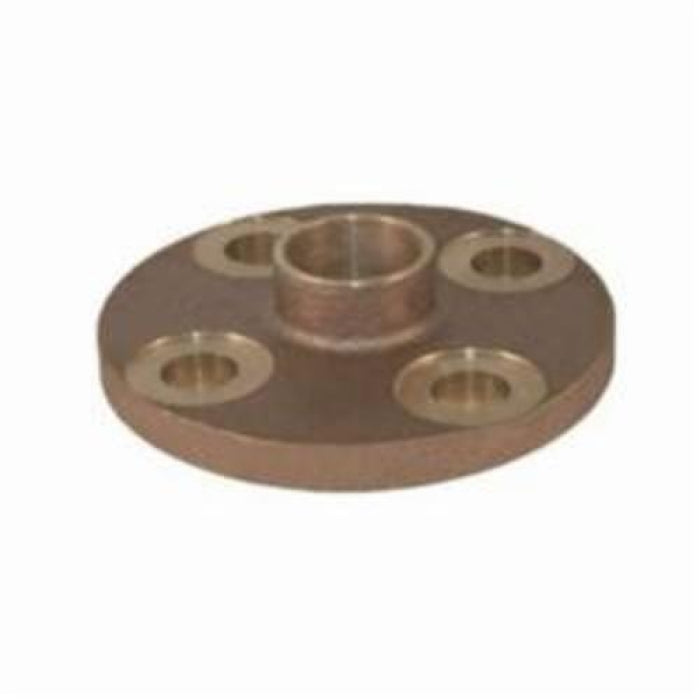

EPC 10056652 Companion Flange Power 3 in Domestic

Product Description

This EPC Companion Flange, MPN 10056652, is designed for solder applications and features a nominal size of three inches. The flange has an inside diameter ranging from three point one two eight to three point one three three inches. It is suitable for various plumbing setups requiring cast brass components.

• Nominal Size: 3 inches
• Material: Cast Brass
• Pressure Class: 150 lb

Product Highlights

This flange is ideal for domestic use and ensures reliable connections in piping systems.

Product Information

Standard Information

• Manufacturer: Elkhart Products Company
• UPC: 683264566521

Technical Specifications

• Bolt Circle Diameter: 6 inches
• Bolt Hole Size: 3/4 inches
• Connection Type: C x C
• Domestic/Import: Domestic
• Inside Diameter: 3.128 to 3.133 inches
• Material: Cast Brass
• Nominal Size: 3 inches
• Number of Bolt Holes: 4
• Outside Diameter: 7-1/2 inches
• Pressure Class: 150 lb
• Series: 4741
• Thickness: 0.62 inches
• Type: Solder
