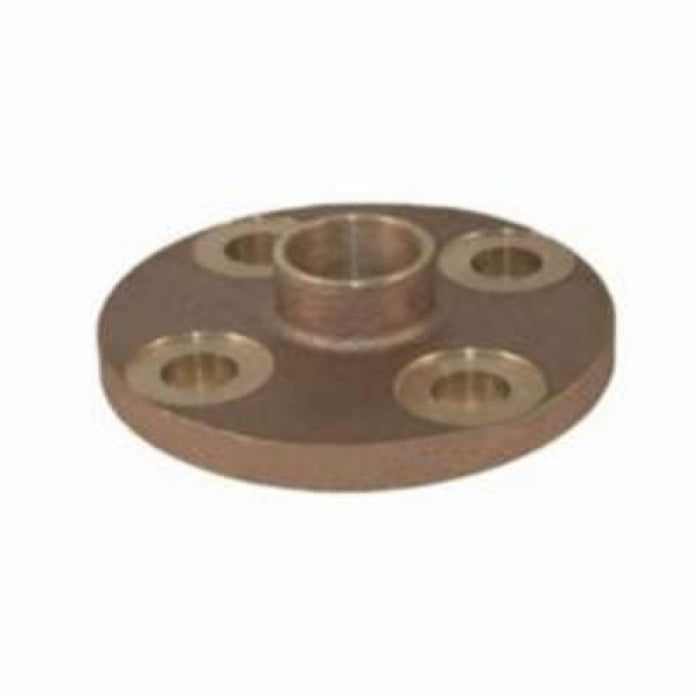

EPC 10056650 Companion Flange 2-1/2 in Replacement MPN

Product Description

The EPC Companion Flange, MPN 10056650, is designed for reliable pipe connections in plumbing systems. This lead-free solder flange measures two and one-half inches nominal and is suitable for domestic use. It features a thickness of zero point five six inches and an outside diameter of seven inches. The flange supports a pressure class of one hundred fifty pounds and accommodates a bolt circle diameter of five and one-half inches with four bolt holes.

• Material: Cast Brass
• Connection Type: C x C
• Applicable Series: 4741

Product Highlights

This flange is essential for creating secure and durable connections in piping installations, catering to both residential and commercial needs.

Product Information

Standard Information

• Brand: EPC
• Manufacturer: Elkhart Products Company

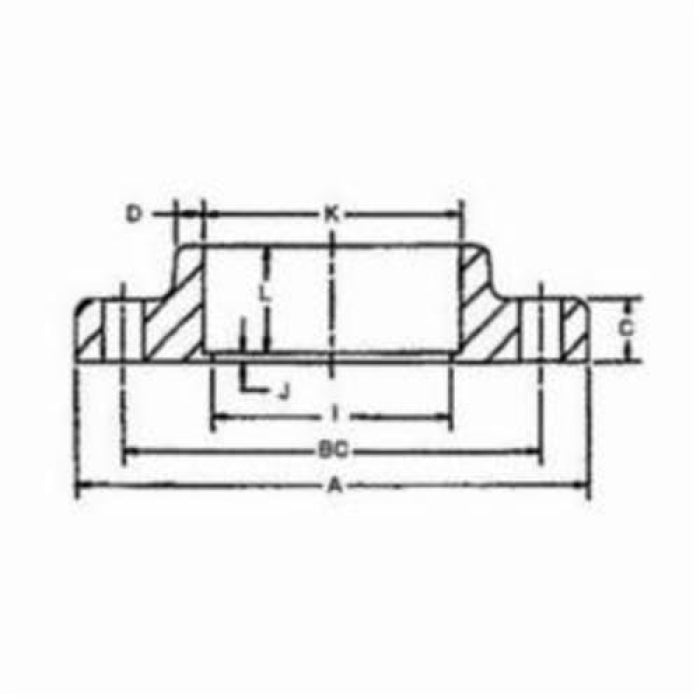

Technical Specifications

• Nominal Size: 2-1/2 in
• Inside Diameter: 2.628 to 2.633 in
• Outside Diameter: 7 in
• Thickness: 0.56 in
• Bolt Circle Diameter: 5-1/2 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Connection Type: C x C
• Pressure Class: 150 lb
• Material: Cast Brass
• Domestic/Import: Domestic
• Series: 4741
