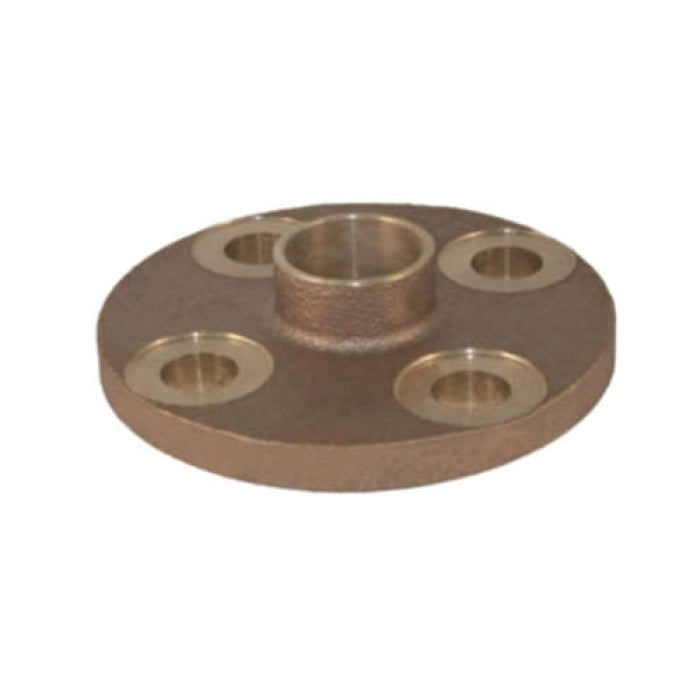

EPC 10056644 Solder Companion Flange 150 lb (1-1/4 in)

Product Description

The EPC Solder Companion Flange, MPN 10056644, is suitable for plumbing and mechanical applications. Manufactured by Elkhart Products Company, this flange is cast from brass and designed for a C x C connection. It works well with ASTM B88 and ASTM B280 seamless copper tubing.

• Nominal size of one and one-fourth inches.
• Rated for 150 lb pressure class.
• Manufactured in the USA.

Product Highlights

Reliable connection point for various plumbing applications. The flange features four bolt holes for secure installation.

Product Information

Standard Information

• Brand: EPC
• Manufacturer: Elkhart Products Company

Technical Specifications

• Nominal Size: 1-1/4 in
• Inside Diameter: 1.378 to 1.382 in
• Outside Diameter: 4.62 in
• Bolt Circle Diameter: 3-1/2 in
• Thickness: 0.41 in
• Material: Cast Brass
• Number of Bolt Holes: 4
• Connection Type: C x C
• Pressure Class: 150 lb
• Series: 4771
• Bolt Hole Size: 0.62 in
• Dimensions: 0.97 in D
