EPC 10056642 4771 Solder Companion Flange 1 in Replacement MPN

Product Description

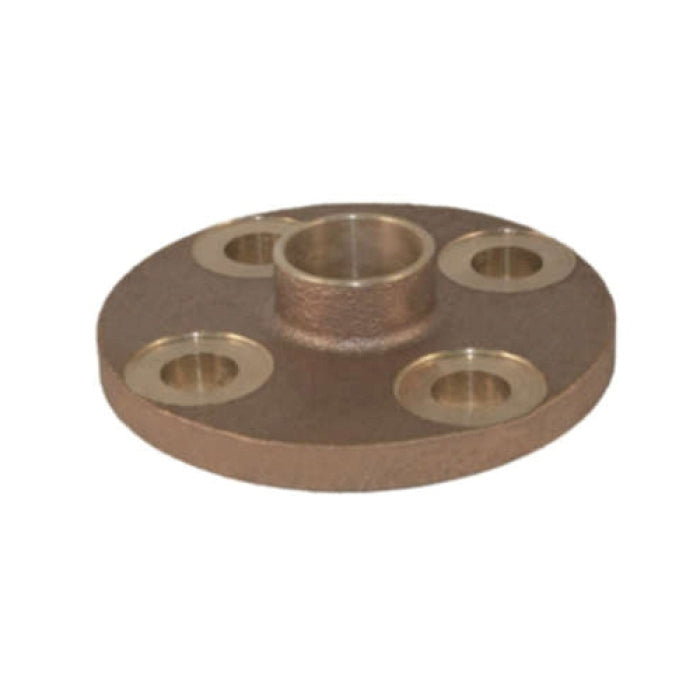

The EPC 10056642 is a solder companion flange made from cast brass. It is part of the 4771 series and is suitable for plumbing and other mechanical applications. This flange features a nominal size of one inch and is designed for use with ASTM B88 and ASTM B280 seamless copper tubes. All fittings are manufactured in the United States.

• Type: Solder
• Material: Cast brass
• Nominal Size: 1 inch

Product Highlights

This EPC flange is robust and versatile, perfect for plumbing installations.

Product Information

Standard Information

• Brand: EPC
• Manufacturer: Elkhart Products Company

Technical Specifications

• Bolt Circle Diameter: 3.12 inches
• Bolt Hole Size: 0.62 inches
• Connection Type: C x C
• Dimensions: 0.91 inches D
• Inside Diameter: 1.128 to 1.132 inches
• Material: Cast Brass
• Nominal Size: 1 inch
• Number of Bolt Holes: 4
• Outside Diameter: 4-1/4 inches
• Pressure Class: 150 lb
• Series: 4771
• Thickness: 0.38 inches
• Type: Solder
